Product details

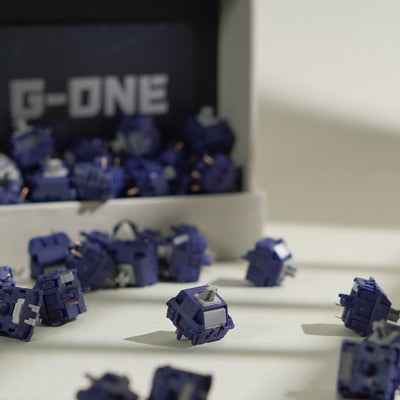

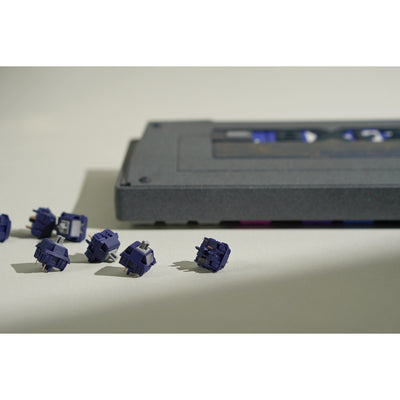

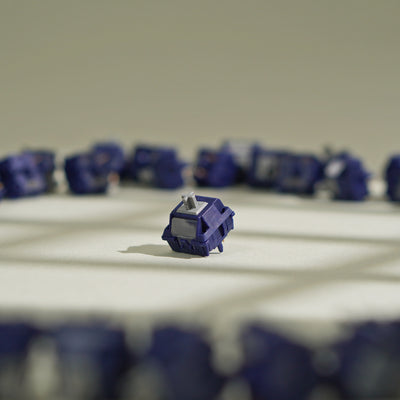

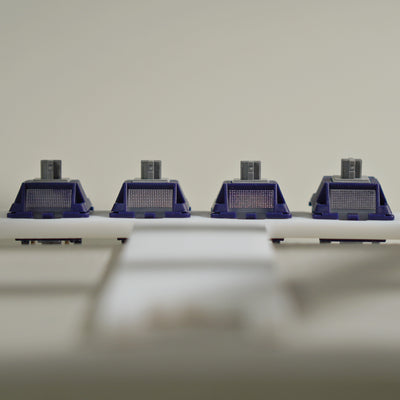

Jointly developed by YG and WINGTREE, the G-ONE Switch is a custom mid-range linear switch with a custom formulated POM stem and PA66 top/bottom housing. It delivers a refined granular smooth feel, clear mid-range sound, and stable performance, featuring stem post bottom-out and precision factory lubrication straight out of the box.
Specifications

Switch Type: Linear (Granular Smooth, Mid-Range)

Manufacturer: WINGTREE

Pins: 5-Pin

Total Travel: 3.6±0.2mm

Actuation Travel: 2.0±0.4mm

Actuation Force: 37gf / 42gf / 50gf

Bottom-Out Force: 42gf / 47gf / 55gf

Materials: Custom Formulated POM Stem, PA66 Top & Bottom Housing

Spring: KOS 22mm Single-Stage

SMD LED: Compatible with SMD LEDs

Lubrication: Factory-Lubed

Sound Profile: Clear, Mid-Range, Refined Granular Tone

Special Features: Granular Smooth Feel, Stem Post Bottom-Out, Custom Design, Factory-Lubed

Inside the box

G-ONE Switches

Protective Anti-Static Storage Tray

Compatibility

Works with any PCB compatible with Cherry style switches.

5 pins can be modified to 3 pins by clipping off the extra 2 pins if necessary.

Warranty

1 year manufacturer's warranty – further warranty provided at OZO’s discretion depending on the situation
