Product details

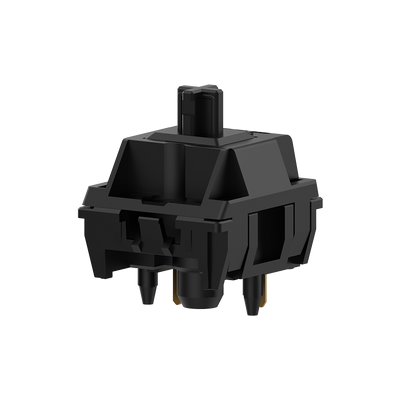

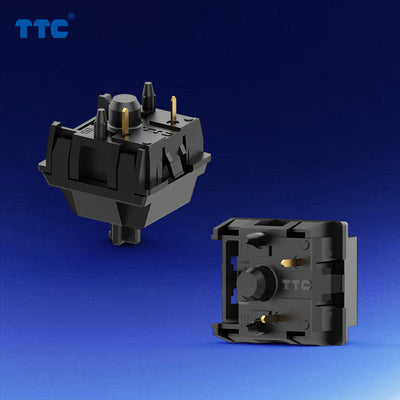

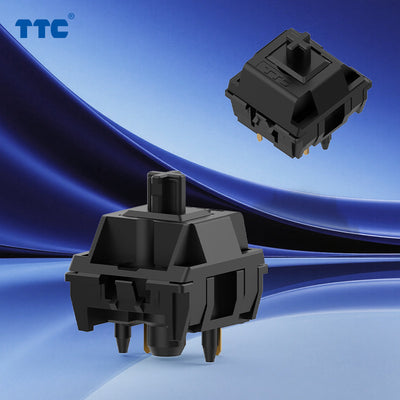

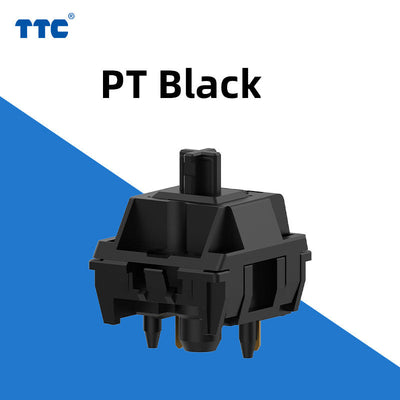

Co-engineered by TTC & Pantheonkeys, the PT Black Switch is an upgraded linear switch based on the classic Cherry MX Black. It keeps the iconic linear feel while solving stock scratch friction and unstable batch consistency found in traditional black switches.
Featuring tightened structural tolerances, it delivers ultra-smooth travel and consistent performance across all batches. A firm, solid bottom-out feel is achieved factory-fresh, no film modification required.
Equipped with a 19mm single-stage spring and balanced 43gf actuation force, this switch is far more comfortable for long-hour typing and gaming than heavy stock black switches. It provides snappy rebound with clean, bright and crisp keystroke sound.
Specifications

Switch Type: Linear

Manufacturer: TTC

Actuation Force: 43gf

Bottom-Out Force: 50gf

Pins: 5-Pin

Pre-Travel: 2.0±0.2mm

Total Travel: 4.0±0.2mm

Materials: Nylon Top Housing, POM Stem, Nylon Bottom Case

Spring: 19mm Single-Stage Spring

SMD LED: Compatible with SMD LEDs

Lubrication: Ultra-light stem wall lubrication only, dry internal structure

Sound Profile: Clean, Bright & Crisp

Special Features: Low friction, high consistency, no film mod needed, fully customisable

Inside the box

PT Black Linear Switches

Protective Anti-Static Storage Tray

Compatibility

Works with any PCB compatible with Cherry style switches.

5 pins can be modified to 3 pins by clipping off the extra 2 pins if necessary.

Warranty

1 year manufacturer's warranty – further warranty provided at OZO’s discretion depending on the situation
