Product details

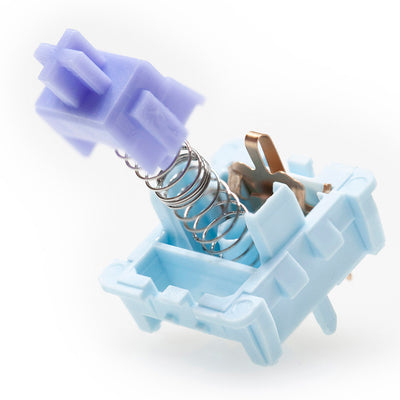

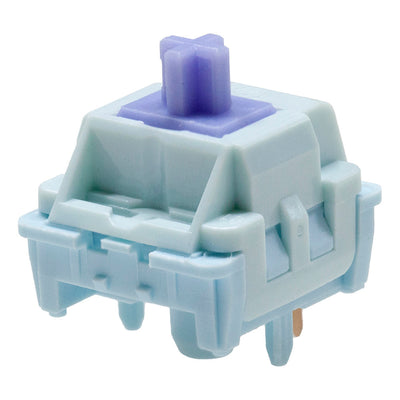

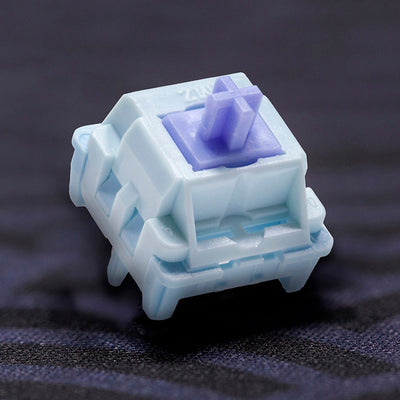

Crafted by MZ studio, the Z1 Pre-Bottom-Out HIFI Linear Switch features an LY stem, PC top housing and PA66 bottom housing, with an extended stem for pre-bottom-out performance, smooth feel, crisp gravel-like HIFI sound and precision factory lubrication.
Specifications

Switch Type: Linear Mechanical Switch (Pre-Bottom-Out, HIFI Sound)

Manufacturer: MZ studio

Pressure Options: 32gf/37gf (18mm dual-stage); 40gf/45gf, 48gf/53gf (22mm dual-stage)

Pins: 5-Pin

Pre-Travel: 2.0±0.2mm

Total Travel: 3.6±0.2mm

Materials: LY Stem, PC Top Housing, PA66 Bottom Housing

Spring: Single-Stage Precision Spring

SMD LED: Compatible with SMD LEDs

Lubrication: Factory-Lubed

Sound Profile: HIFI, Crisp, Gravel-Like

Special Features: Pre-Bottom-Out Design, Extended Stem, 3 Pressure Options, Smooth Touch

Inside the box

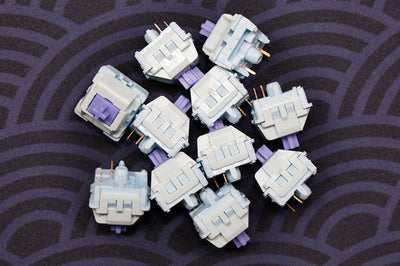

Z1 Linear Switches

Protective Anti-Static Storage Tray

Compatibility

Works with any PCB compatible with Cherry style switches.

5 pins can be modified to 3 pins by clipping off the extra 2 pins if necessary.

Warranty

1 year manufacturer's warranty – further warranty provided at OZO’s discretion depending on the situation
