Product details

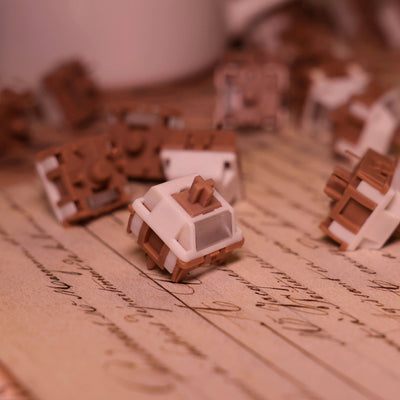

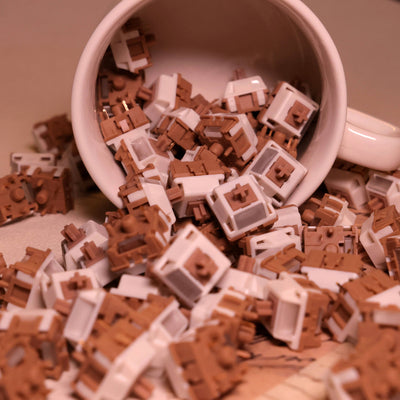

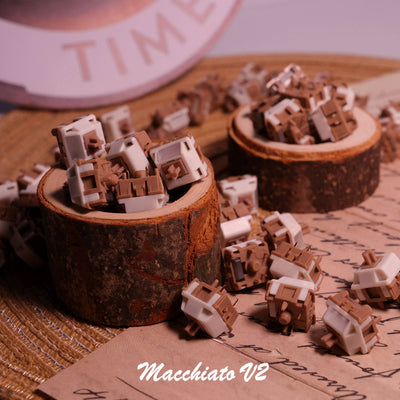

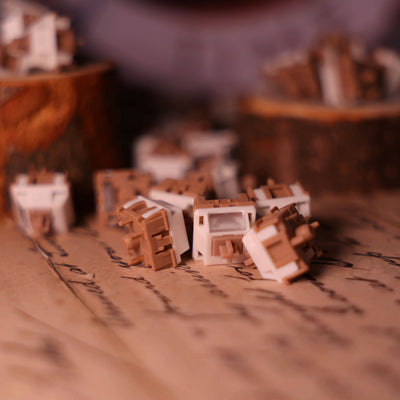

Designed by YG Studio and produced by HMX, the Macchiato Switch V2 is a long‑travel linear switch with a POK stem, modified PA12 top housing and P2 bottom housing. It uses a stem‑column bottom‑out design for stable, smooth keystrokes and a clean HIFI sound.
Specifications

Switch Type: Linear (Long‑Travel)

Manufacturer: HMX

Actuation Force: 37gf / 42gf / 50gf

Bottom-Out Force: 42gf / 50gf / 57gf

Pins: 5-Pin

Pre-Travel: 1.8mm

Total Travel: 3.8mm

Materials: POK Stem, Modified PA12 Top, P2 Bottom

Spring: KOS 22mm Single-Stage

SMD LED: Compatible with SMD LEDs

Lubrication: Factory-Lubed

Sound Profile: HIFI, Crisp Mahjong Tone

Special Features: Long‑Travel, Stable Bottom‑Out, Smooth Feel, HIFI Sound

Inside the box

Macchiato V2 Linear Switches

Protective Anti-Static Storage Tray

Compatibility

Works with any PCB compatible with Cherry style switches.

5 pins can be modified to 3 pins by clipping off the extra 2 pins if necessary.

Warranty

1 year manufacturer's warranty – further warranty provided at OZO’s discretion depending on the situation

Got questions? 🤔

Do you have any questions, or unsure if this product is compatible with your setup?
