Produktdetails

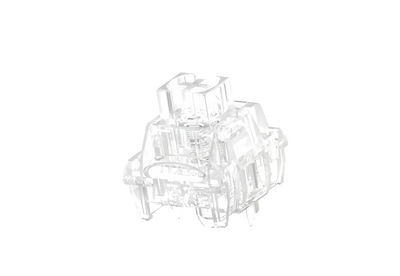

TTC Ice Silent V2 Switches

A Different Approach to Silence

Most silent switches make a trade-off. They dampen the sharp clack of a keystroke but often at the cost of the crisp, responsive feedback that makes mechanical keyboards so satisfying. The result can feel mushy and indistinct. TTC took a different approach with the Ice Silent V2. Instead of using a single, oversized dampener, they built a multi-point silencing system from the ground up to preserve a clean, linear feel.

A Closer Look at Quiet

Under the crystal-clear housing, the Ice Silent V2 uses a combination of materials and design choices to achieve its performance. The core of the switch is its dual silencing structure, which places independent dampeners at the three critical impact points within the switch.

This includes: an elastomer pad directly under the stem to absorb the downstroke, a silencing structure in the upper cover to soften the upstroke, and a final pad in the base to eliminate any lingering resonance. It’s a complete system that stops noise at every source, finished with a light factory lubrication for a smooth press right out of the box.

A Closer Look at Quiet

The engineering extends beyond acoustics. The "Ice" name comes from the switch's high-transparency polycarbonate housing, which is designed to maximize the vibrancy of your keyboard's backlighting. A new, rounded light condenser brightens light transmission by over 60% compared to earlier versions, making any RGB effect shine.

Inside, the components are built for longevity. The conductive terminals feature an anti-oxidation coating and gold-plated contacts to ensure reliable performance for its entire 50-million-keystroke lifespan. A tight stem-to-housing tolerance of just ±0.02mm keeps wobble to a minimum, giving every keypress a stable, solid feel.

More Than Just Silent

Features at a Glance

Dual Silencing Structure

Independent dampeners on the stem, upper housing, and base eliminate noise from both the downstroke and upstroke without feeling mushy.

Crystal-Clear Housing

A high-transparency polycarbonate body and a new light condenser make your keyboard's RGB backlighting brighter and more vivid.

Smooth Linear Feel

A light 39gf actuation force and an upgraded POM stem create an effortless, low-friction keystroke perfect for long typing sessions.

Engineered for Durability

Gold-plated contacts, an anti-oxidation coating, and a 50-million-press rating ensure long-term performance and reliability.

Minimal Stem Wobble

A tight tolerance between the stem and housing provides a stable, solid feel with every press.

Frequently Asked Questions & Specifications

Questions & Answers

What type of switch is the TTC Ice Silent V2?

It is a silent linear switch. It provides a smooth, consistent press from top to bottom with no tactile bump or audible click, and it is engineered to be exceptionally quiet.

Are these switches pre-lubed?

Yes, they come with a light factory application of lubricant on the internal components. This ensures a smooth feel right out of the box.

What is the pin count for these switches?

These are 3-pin (plate-mount) switches, making them compatible with a wide range of hot-swap keyboards that support 3-pin configurations.

How do they compare to other silent switches?

The main difference is the feel. Many silent switches use a single, soft pad that can make the bottom-out feel spongy. The Ice Silent V2 uses a multi-point system with firmer elastomer pads, which helps it remain quiet while providing a cleaner, more defined bottom-out.

Specifications

  • Switch Type: Silent Linear
  • Mounting: 3-Pin (Plate Mount)
  • Actuation Force: 39gf
  • Bottom-Out Force: 43gf
  • Pre-Travel: 2.0mm (±0.4mm)
  • Total Travel: 3.5mm (±0.4mm)
  • Durability: 50 Million Keystrokes
  • Top Housing: Polycarbonate (PC)
  • Bottom Housing: Polycarbonate (PC)
  • Stem Material: POM
  • Spring: Silver-Plated Spring
  • Contacts: Gold-Plated Copper Alloy
  • Lubrication: Lightly Factory Lubed

Haben Sie Fragen? 🤔

Haben Sie Fragen oder sind Sie sich nicht sicher, ob dieses Produkt mit Ihrer Konfiguration kompatibel ist?

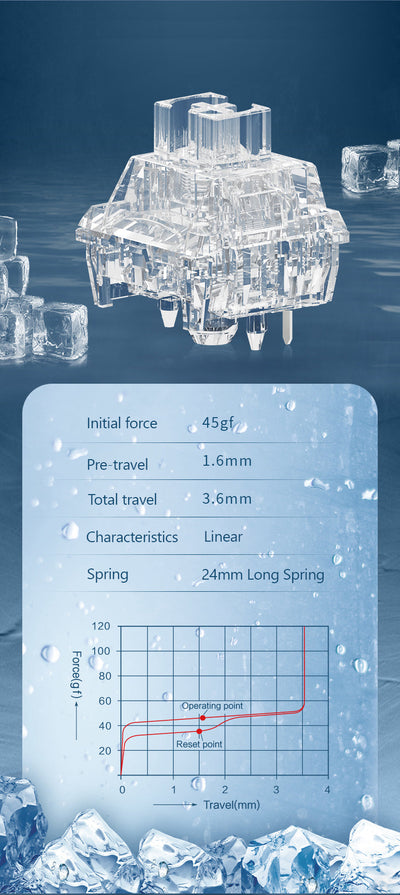

Spezifikationen

• Brand: TTC
• Product Name: Ice Linear Mechanical Keyboard Switches
• Switch Type: Linear
• Mount: 5-pin PCB mount
• Stem Type: MX-style cross stem
• Pre-Lubed: Yes (factory pre-lubricated)
• Spring: High-purity long spring (~24 mm)
• Travel: Smooth linear travel profile
• Sound Profile: Clean and balanced linear tone
• Durability: Designed for extended lifespan
• Pack Size: 10 switches

Im Inneren der Schachtel

• 10 × TTC Ice linear mechanical switches
• Protective packaging

Kompatibilität

• Compatible with MX-style mechanical keyboards and PCBs supporting 5-pin switch sockets
• Works with hot-swap and solder-mount boards
• Suitable for gaming setups, programming, everyday typing, and custom builds
• Fits 60%, 65%, TKL, full-size, and other standard layouts

Garantie

1 year manufacturer’s warranty – further warranty provided at OZO’s discretion depending on the situation
