Product details

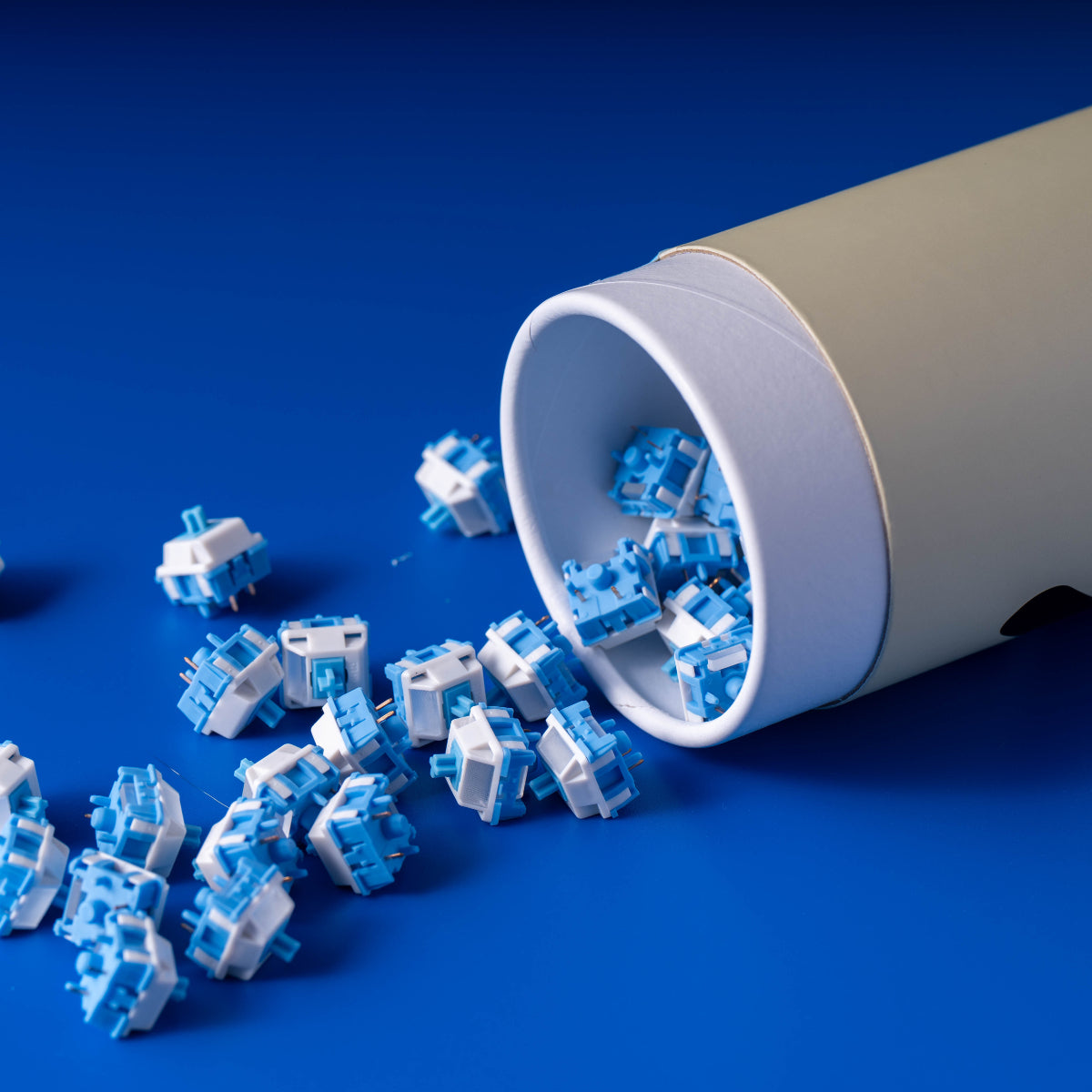

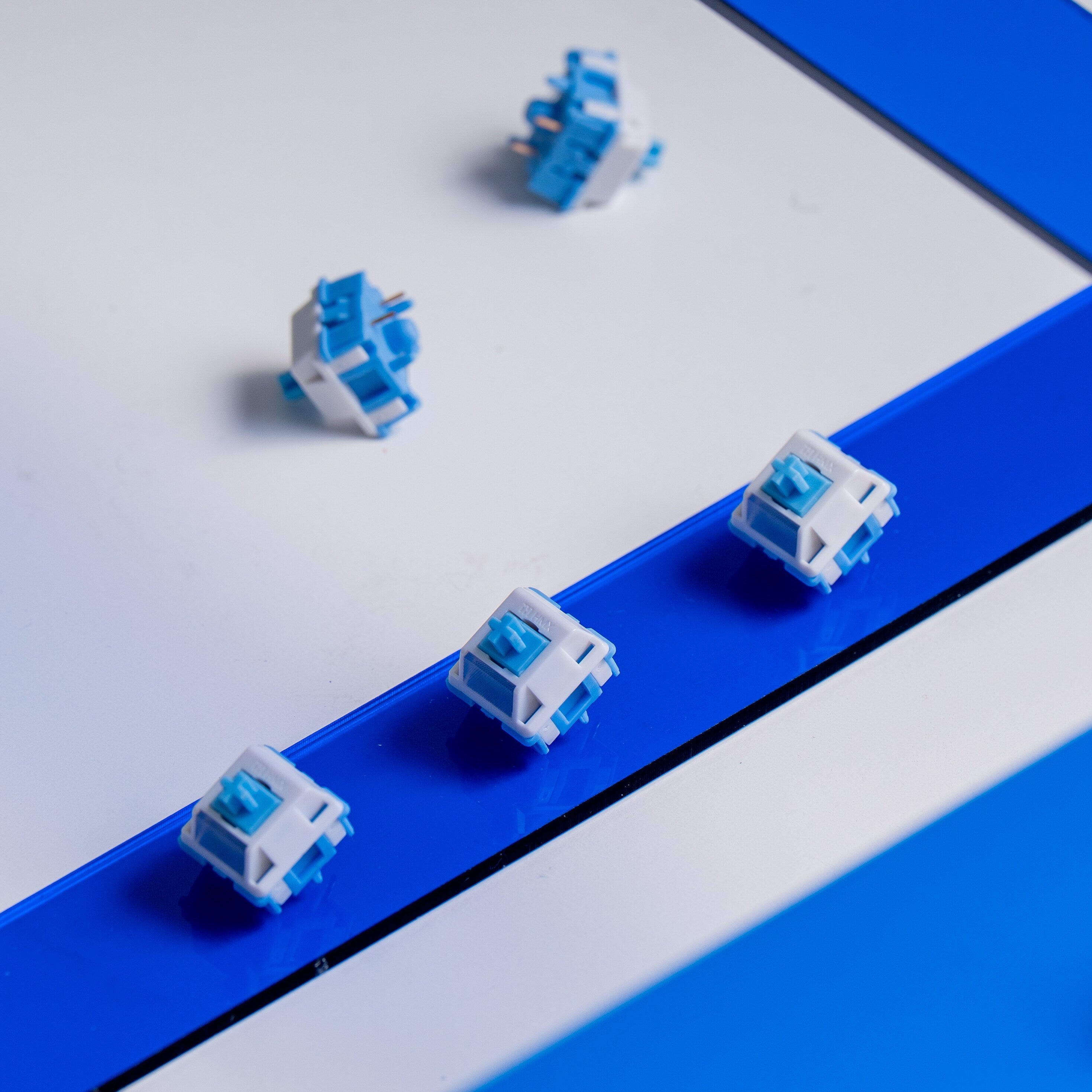

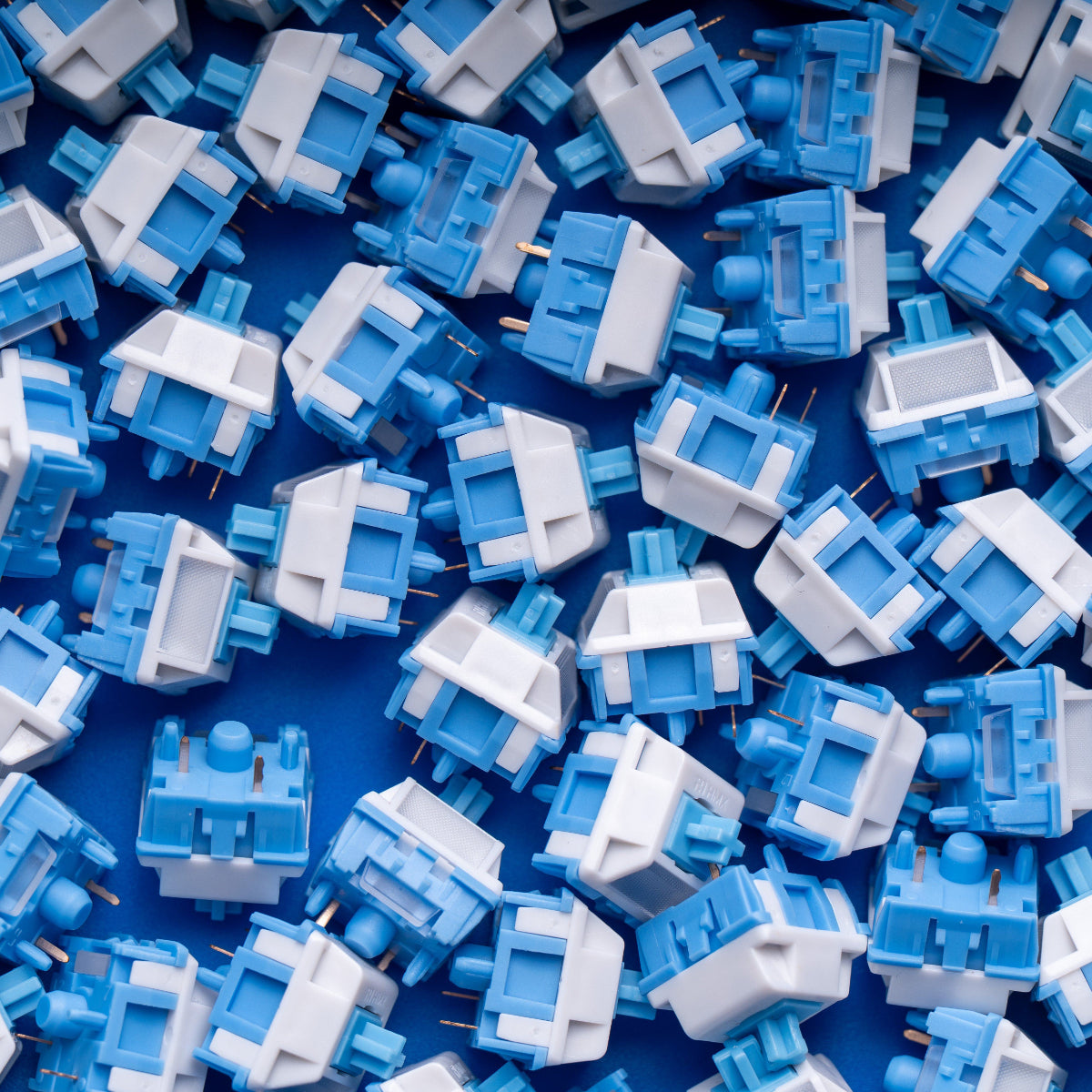

Co-developed by XLLAB and HMX, the Cloud V2 is a linear switch with crisp stone-like sound and native light guide column. Its new top housing with enlarged stem clearance ensures smooth, unobstructed operation.
Its mesh-treated top housing reduces grease adhesion for smooth activation. It has minimal pre-lubrication for a dry feel, faint friction sound, and uniform RGB lighting via the native light guide column.
Specifications

Switch Type: Linear (Crisp Stone Sound)

Manufacturer: HMX

Actuation Force: 37g / 45g

Bottom-Out Force: 43g / 53g

Pins: 5-Pin

Pre-Travel: 2.0mm

Total Travel: 3.5mm

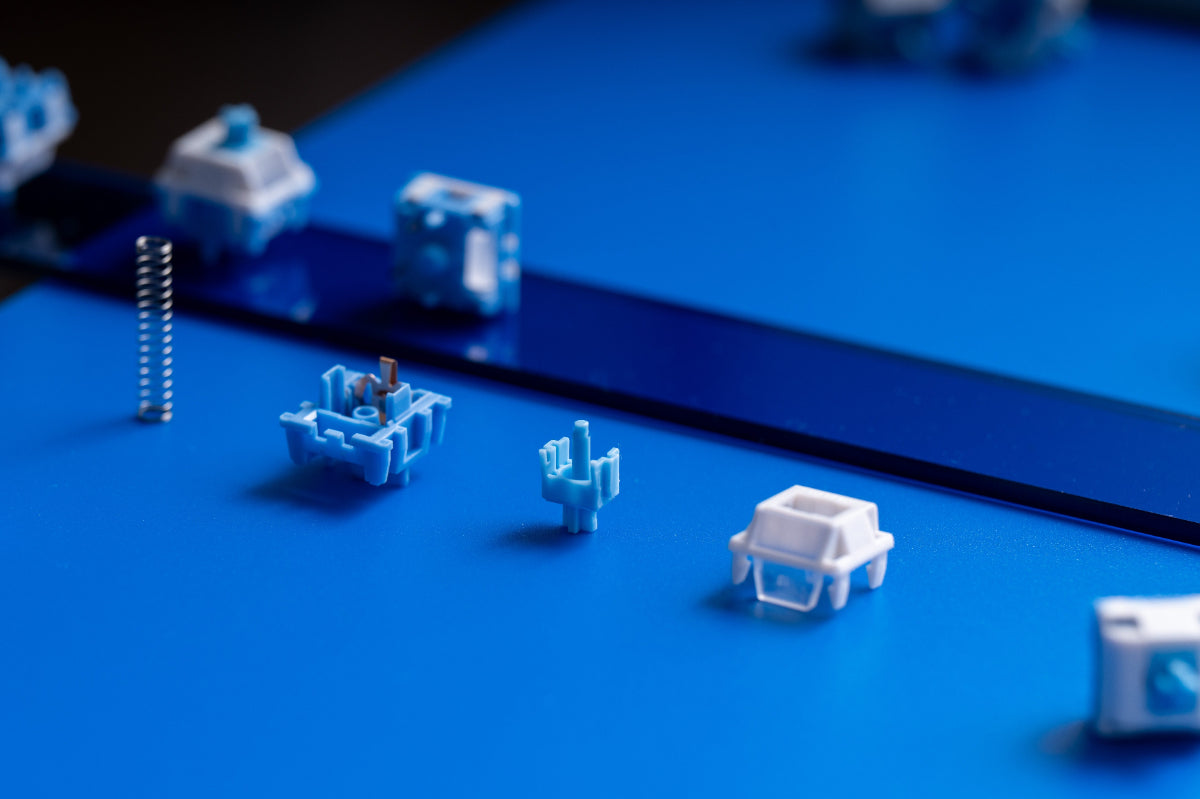

Materials: PA12 Top Housing, LY Stem, PA-2 Bottom Housing

Spring: 22mm Single-Stage Precision KOS Spring

Lubrication: Factory Pre-Lubricated

Sound Profile: Crisp, Stone-Like, Faint Friction Sound (Close to Ear)

Special Features: New Top Housing, Mesh-Treated Rebound Position, Native Light Guide Column, Dry Tactile Feel

Inside the box

XLLAB x HMX Yamatake Tactile Switches

Protective Anti-Static Storage Tray

Compatibility

Works with any PCB compatible with Cherry style switches.

5 pins can be modified to 3 pins by clipping off the extra 2 pins if necessary.

Warranty

1 year manufacturer's warranty – further warranty provided at OZO’s discretion depending on the situation

Got questions? 🤔

Do you have any questions, or unsure if this product is compatible with your setup?
