Product details

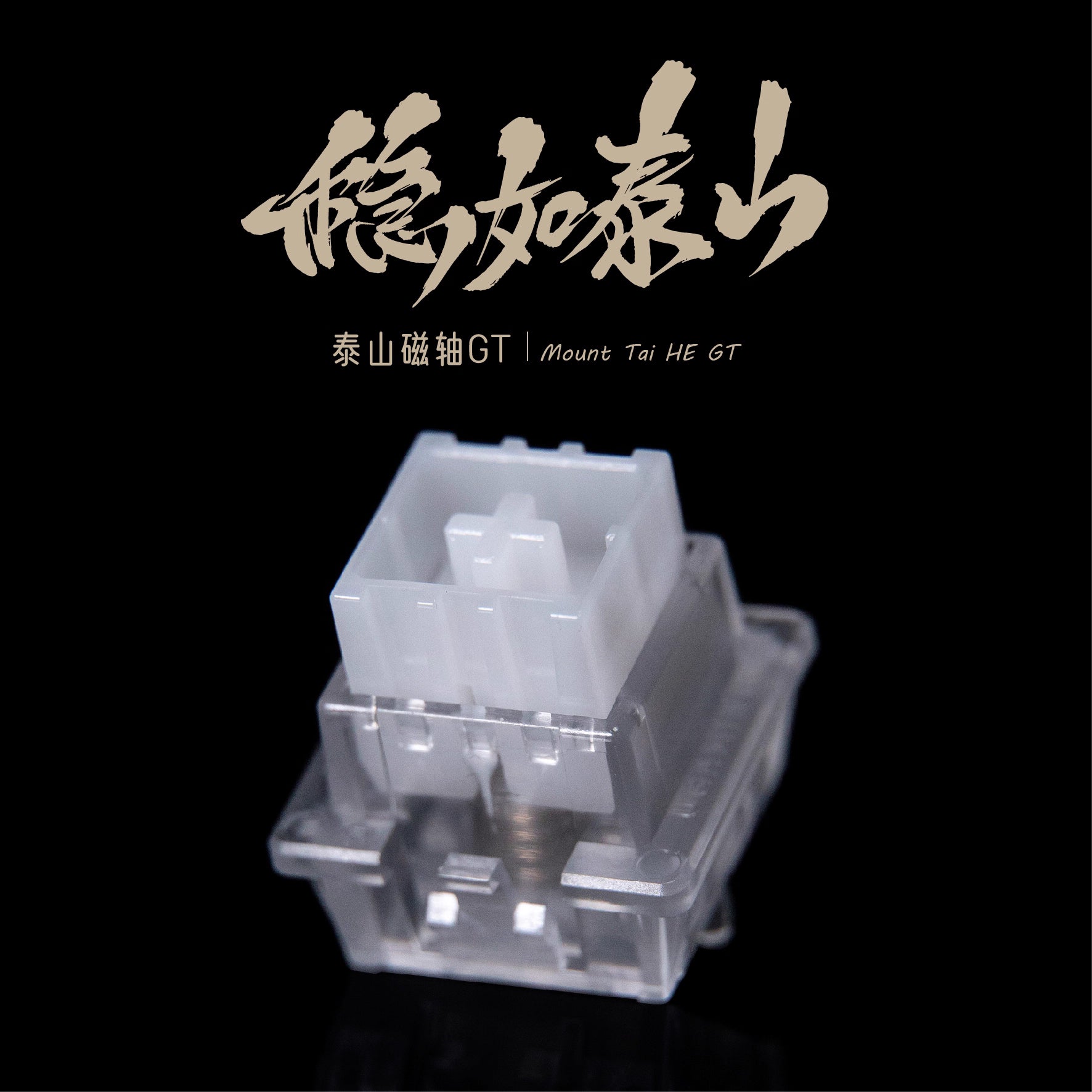

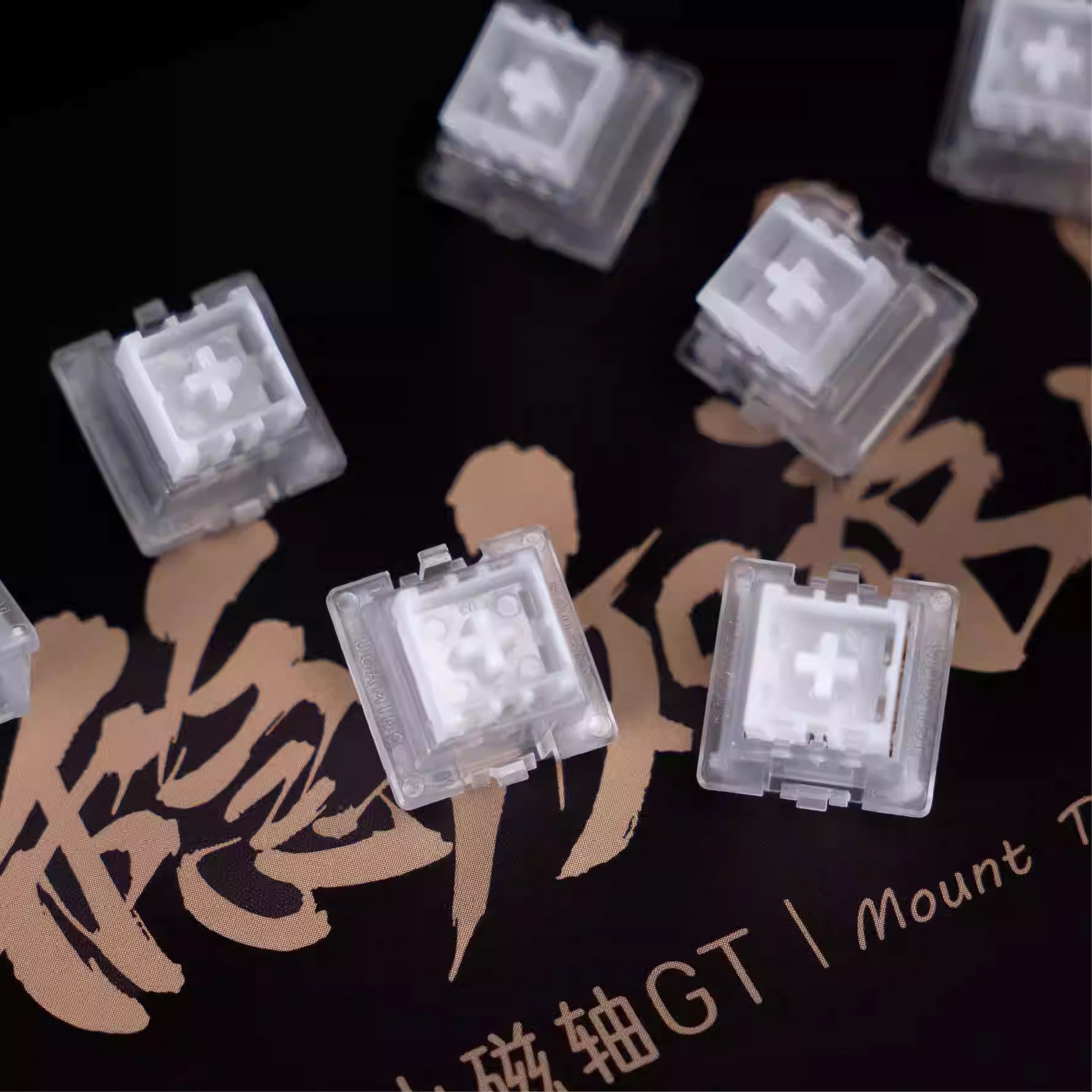

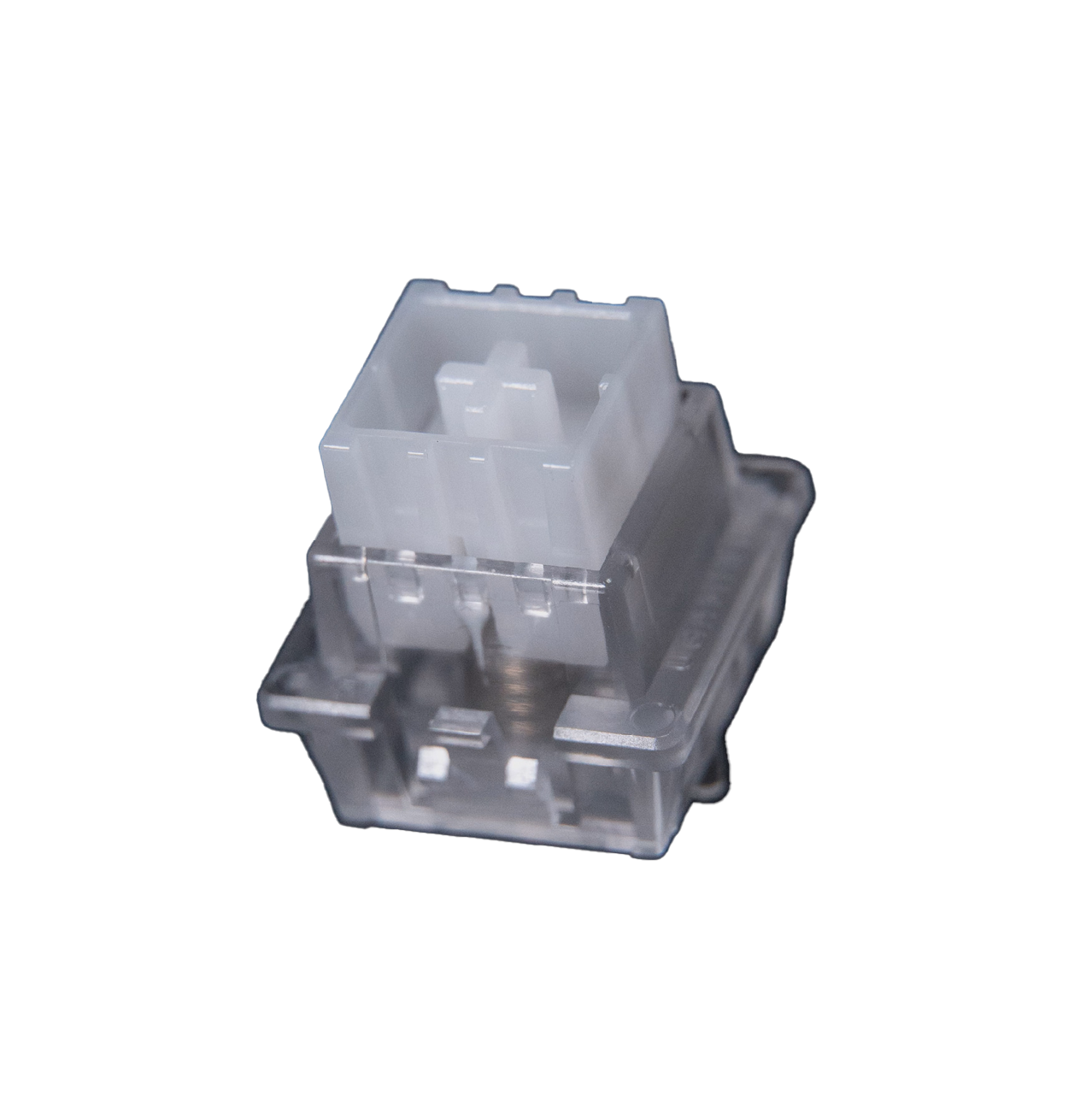

The Mount Tai HE Magnetic Switches represent a leap forward in switch technology, employing Hall-effect magnetic sensing to deliver contactless, highly durable keystrokes. Crafted with a PC housing and UPE mix stem, these switches offer a total travel of 3.5 mm, a 22 mm spring, an initial magnetic flux of 100 Gs and bottom-out flux of 640 Gs, supporting actuation forces around 35 gf and bottom-out around 47 gf. These switches are factory pre-lubed for smooth operation out of the box. Designed for compatible magnetic‐switch keyboards (rather than standard mechanical PCBs), they provide exceptional stability, near-zero wobble and high precision — ideal for gaming and high-performance typing.

Got questions? 🤔

Do you have any questions, or unsure if this product is compatible with your setup?

Specifications

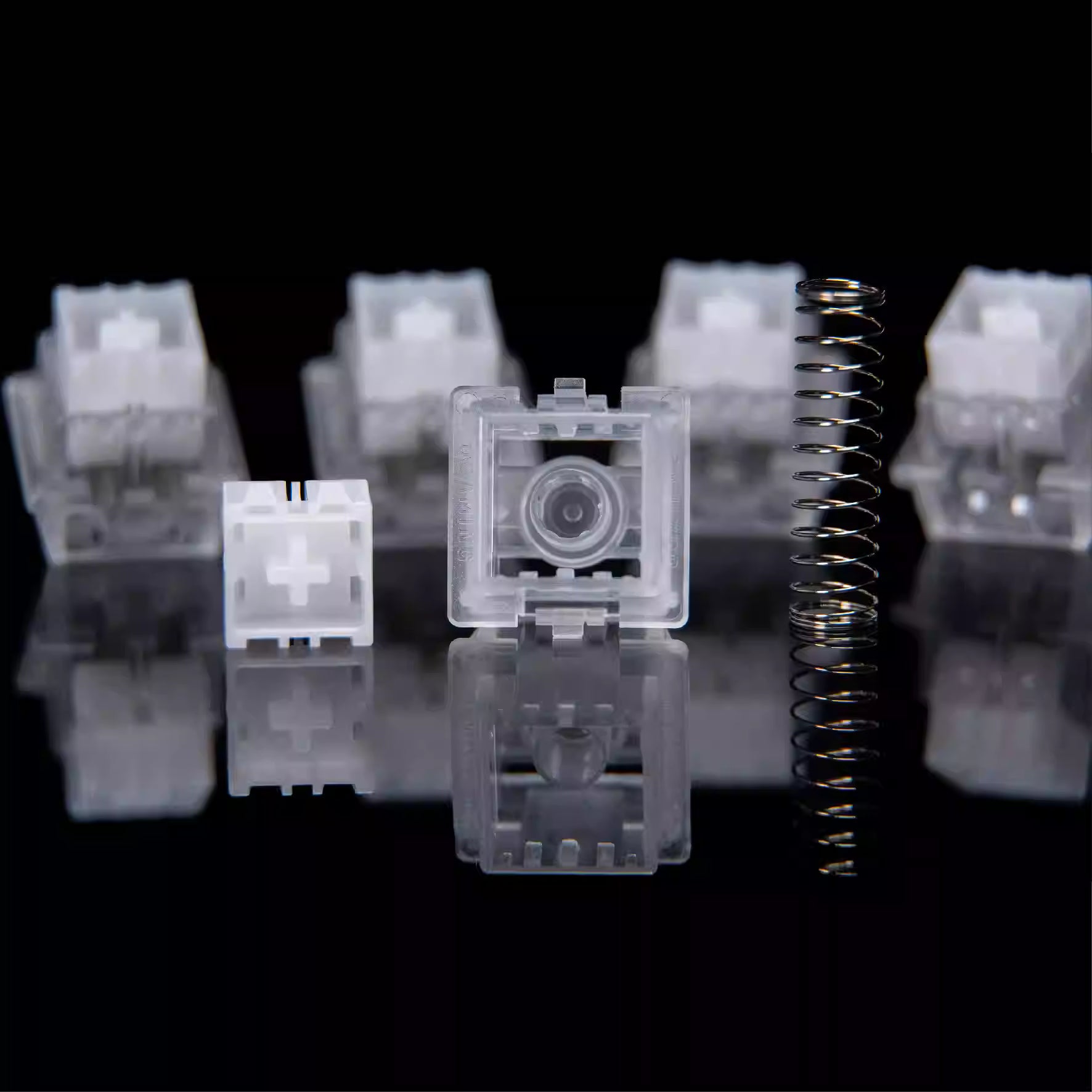

Housing Material: PC

Stem Material: UPE mix

Total Travel: 3.5 mm

Spring: 22 mm

Initial Magnetic Flux (1.2 mm PCB): ~100 Gs

Bottom-Out Magnetic Flux (1.2 mm PCB): ~640 Gs

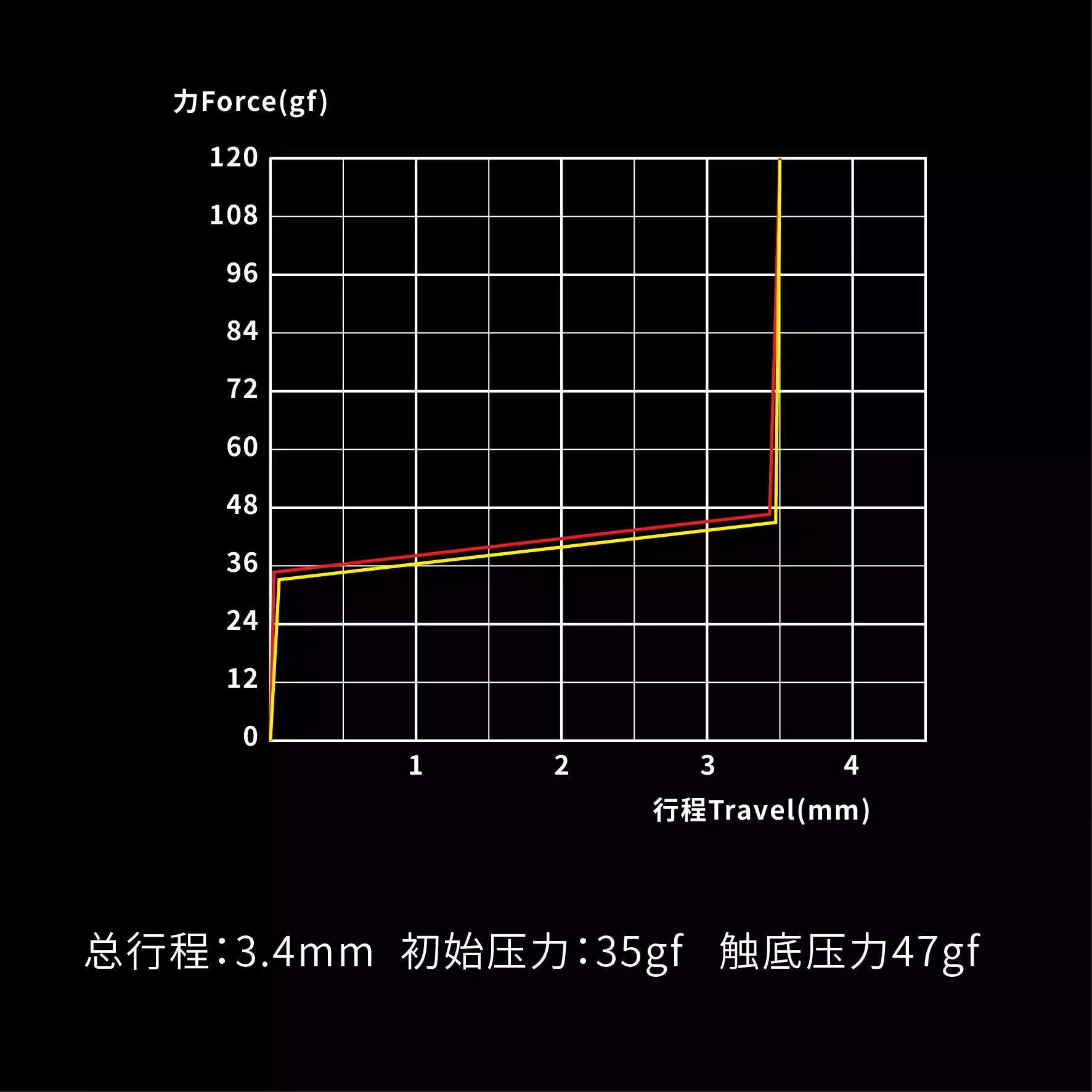

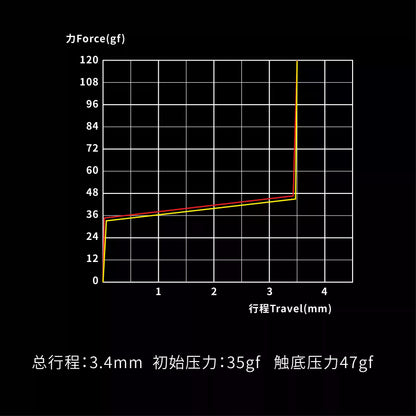

Initial Force: ~35 gf

Bottom-Out Force: ~47 gf

Magnet Configuration: centre & N-pole

Lubrication: Pre-lubed by factory

Inclusion: Switches only (keyboard & keycaps not included)

Design: Mount Tai HE Magnetic Switch series

Inside the box

1 × Pack of Mount Tai HE Magnetic Switches (quantity based on chosen pack)

Compatibility

Compatible with keyboards that support Hall-effect / magnetic switch platforms (e.g., Wooting, MelGeek, NUPHY, MonsGeek, etc)

Not compatible with standard mechanical keyboard PCBs unless they support magnetic switches

Warranty

1-year manufacturer’s warranty
