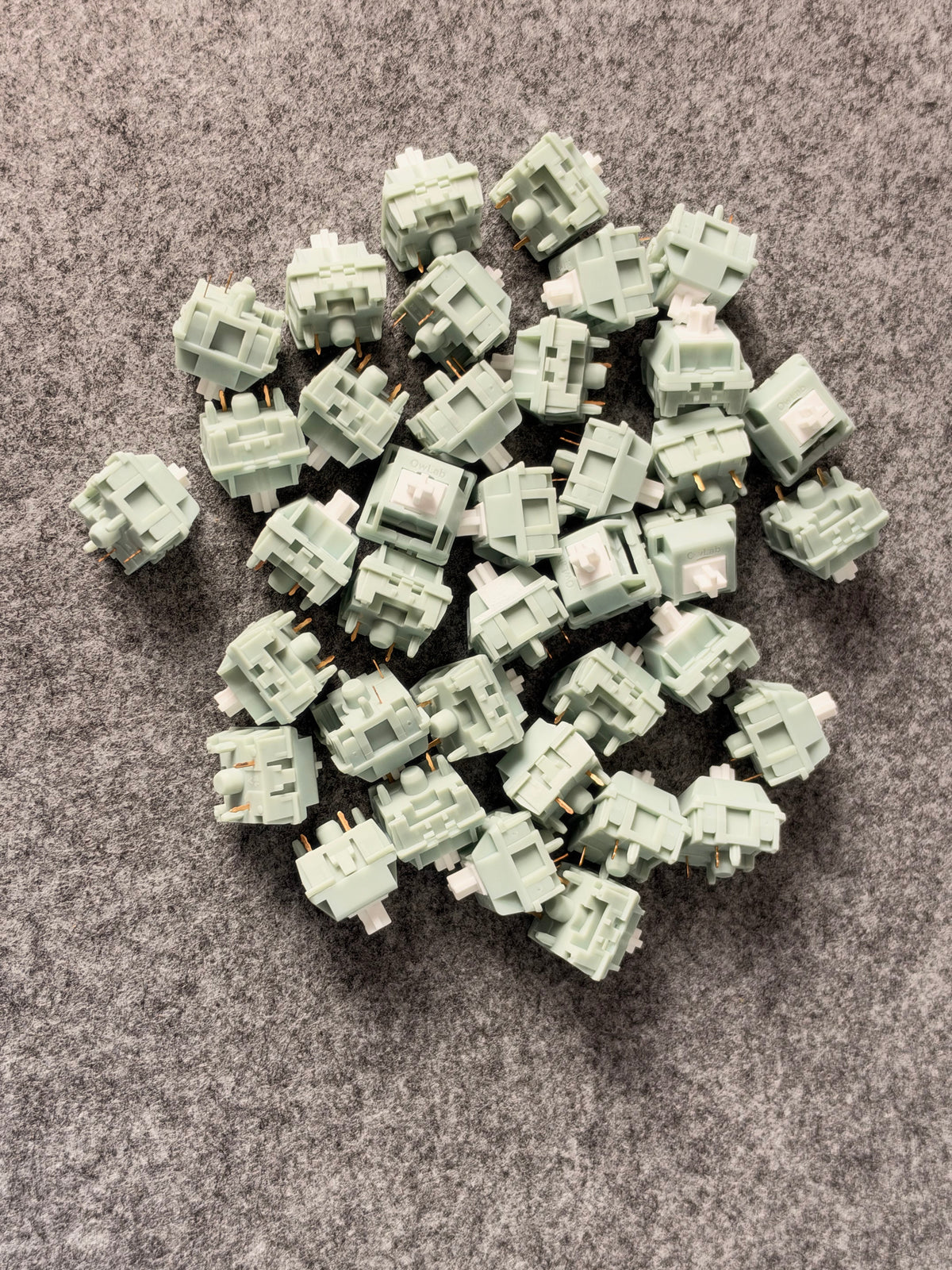

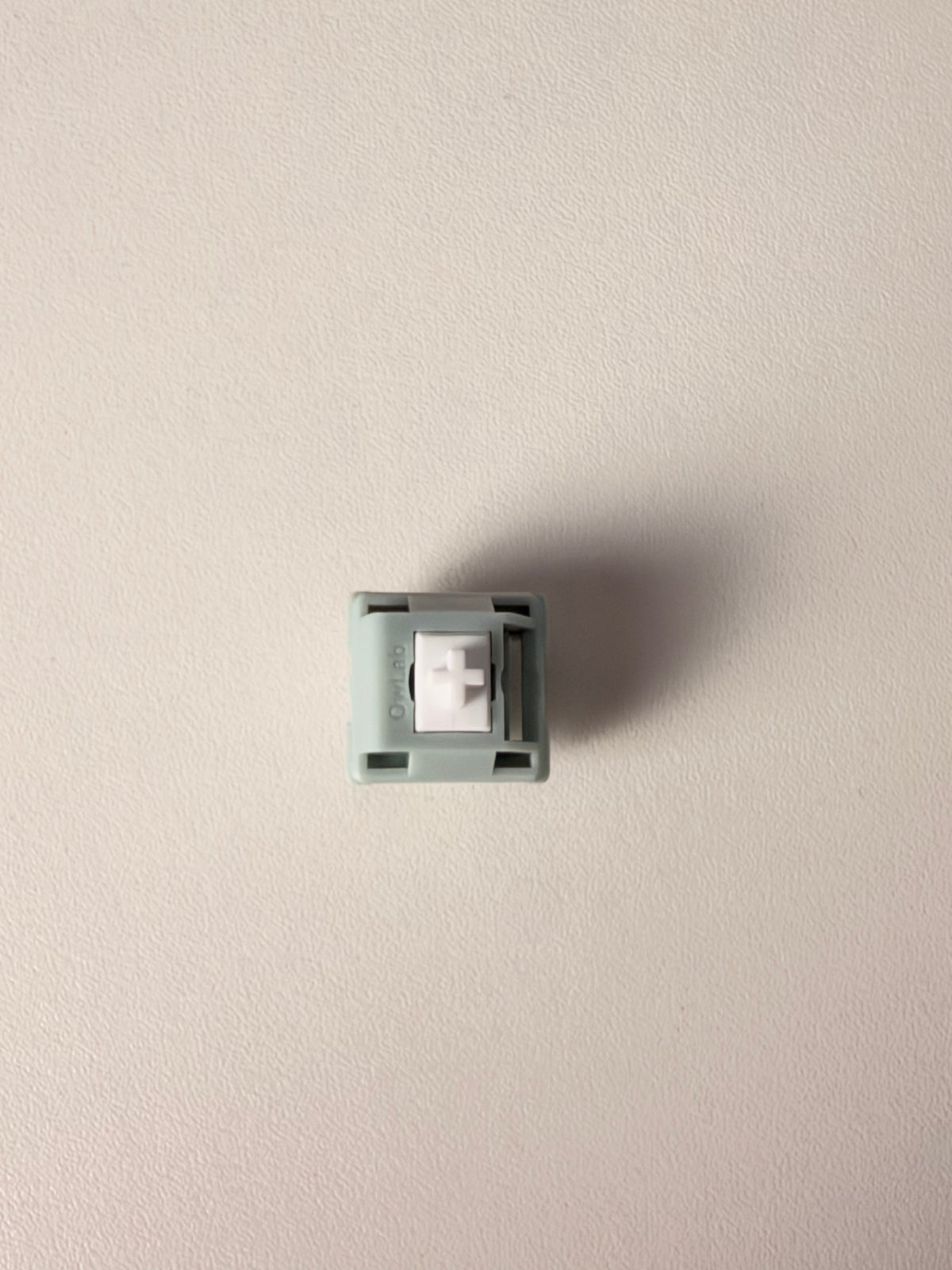

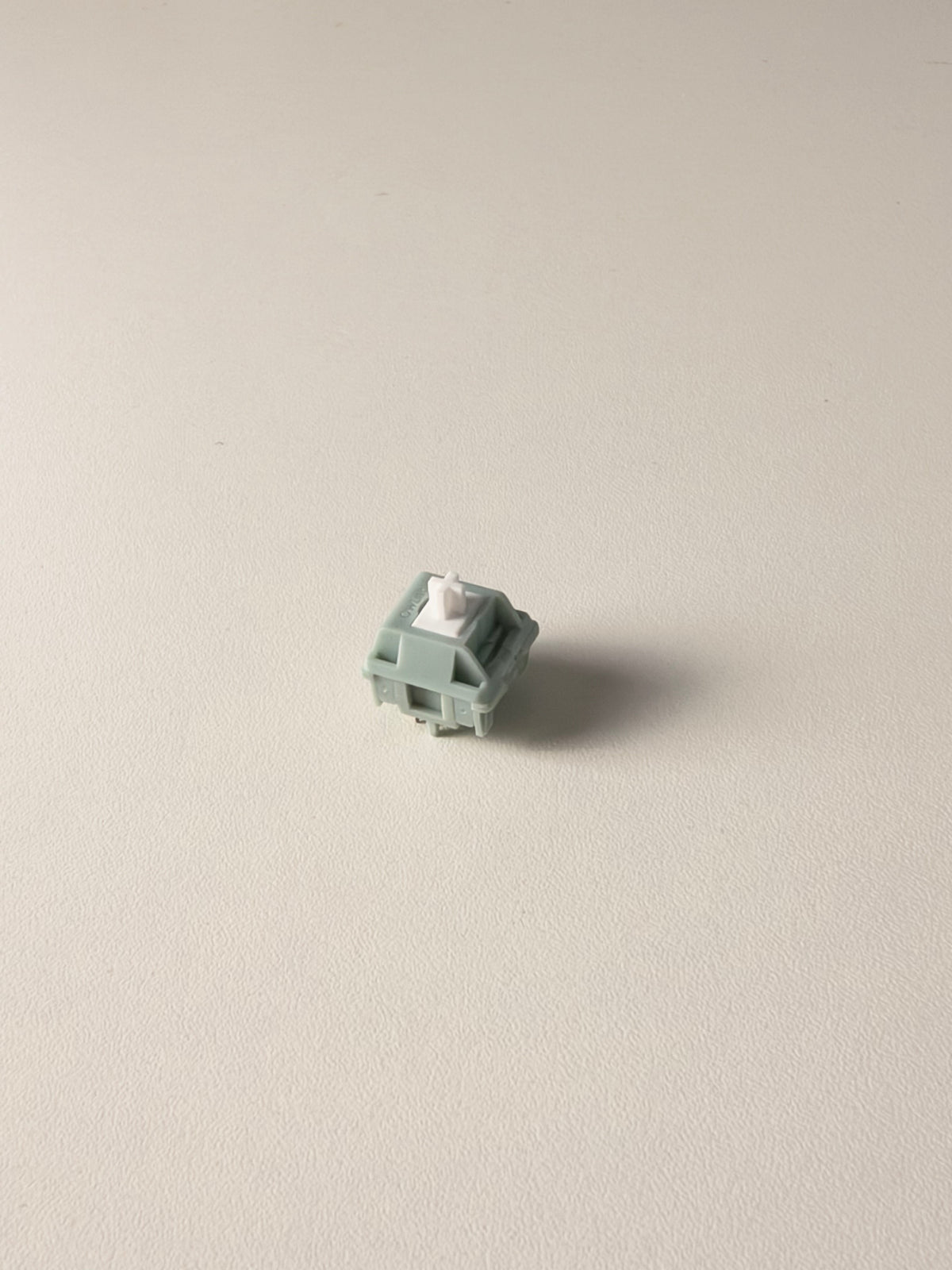

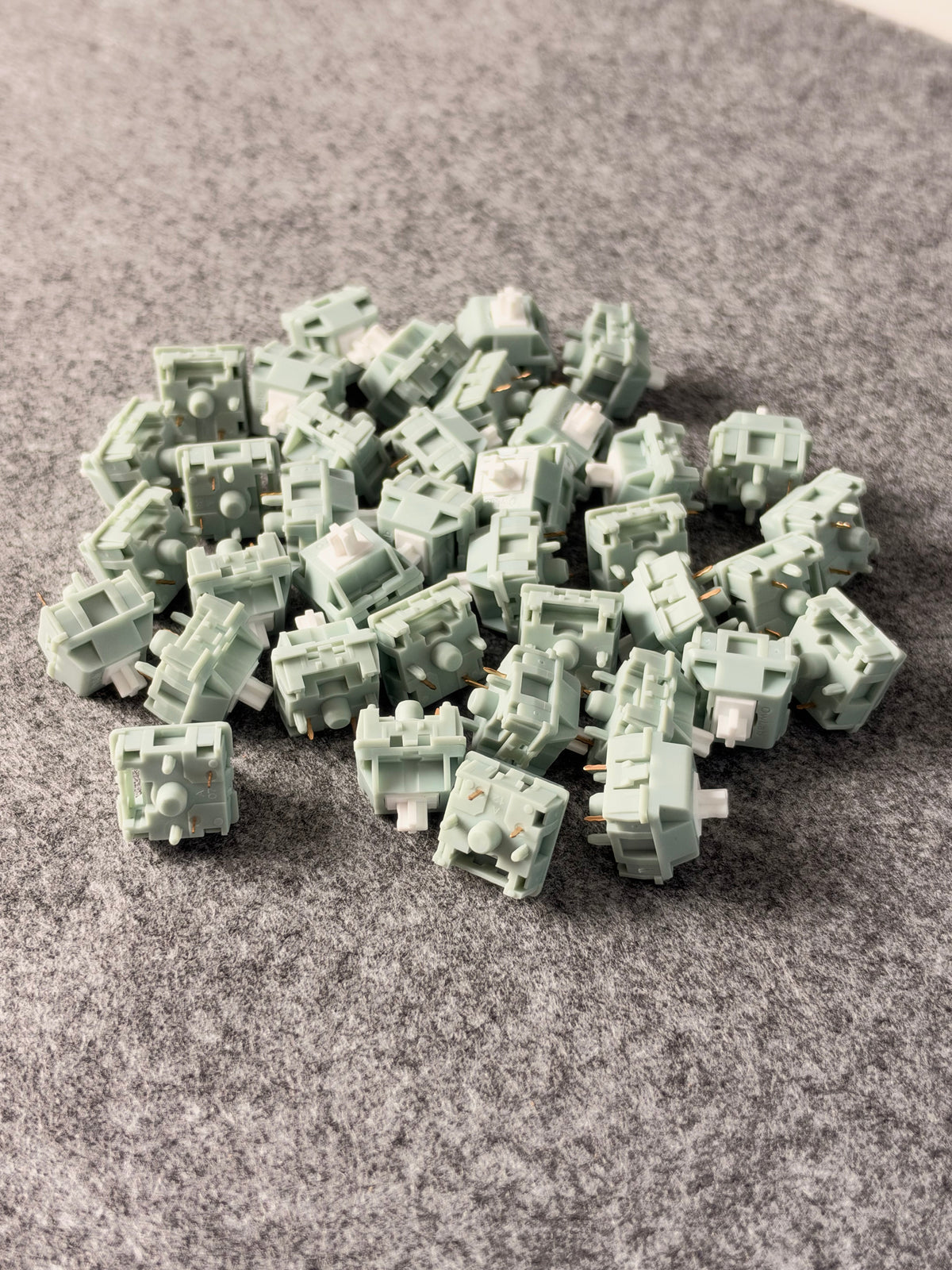

OwLab London Fog Linear Switches (10 Pack)

Smooth, consistent, long-pole

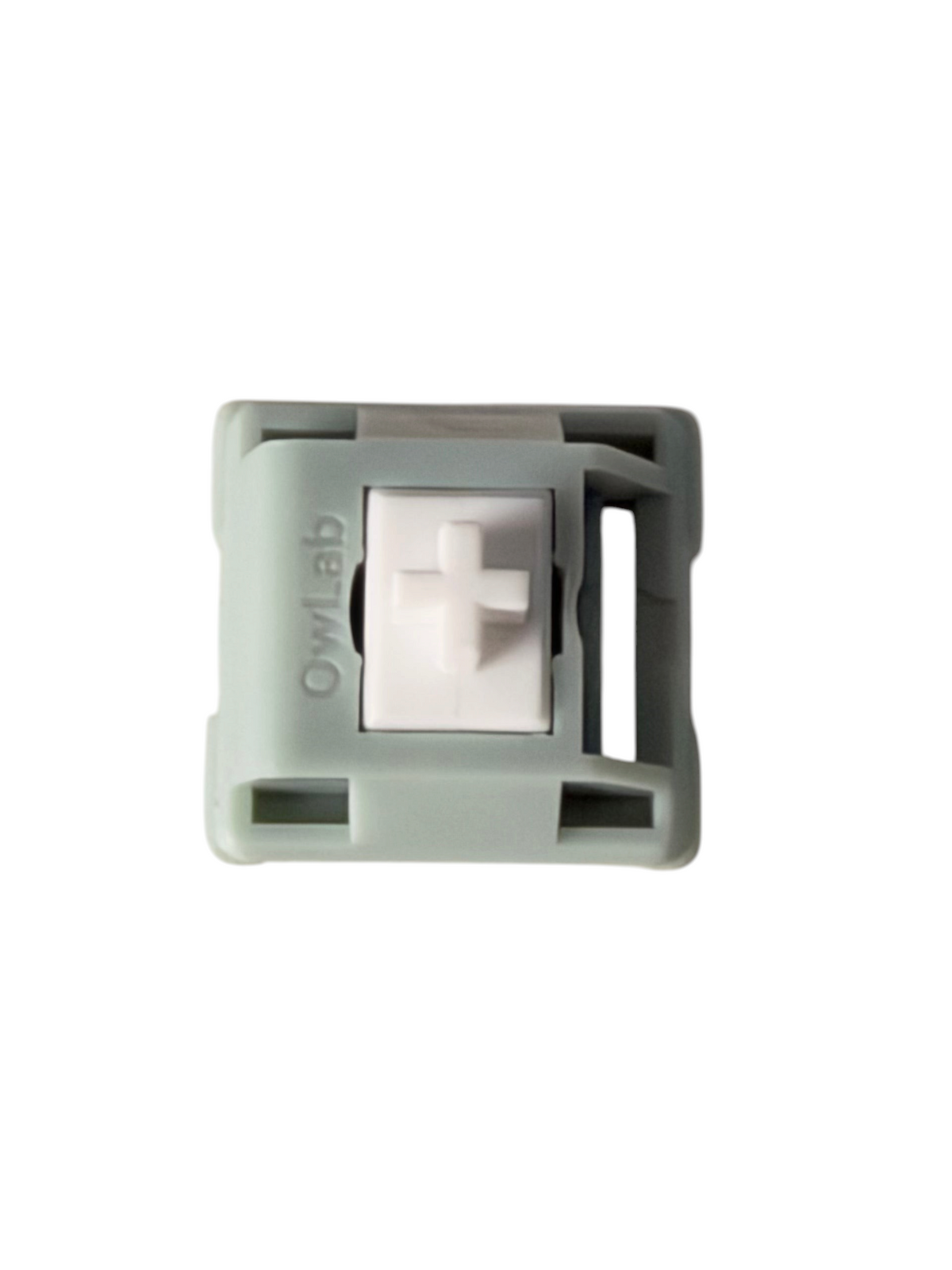

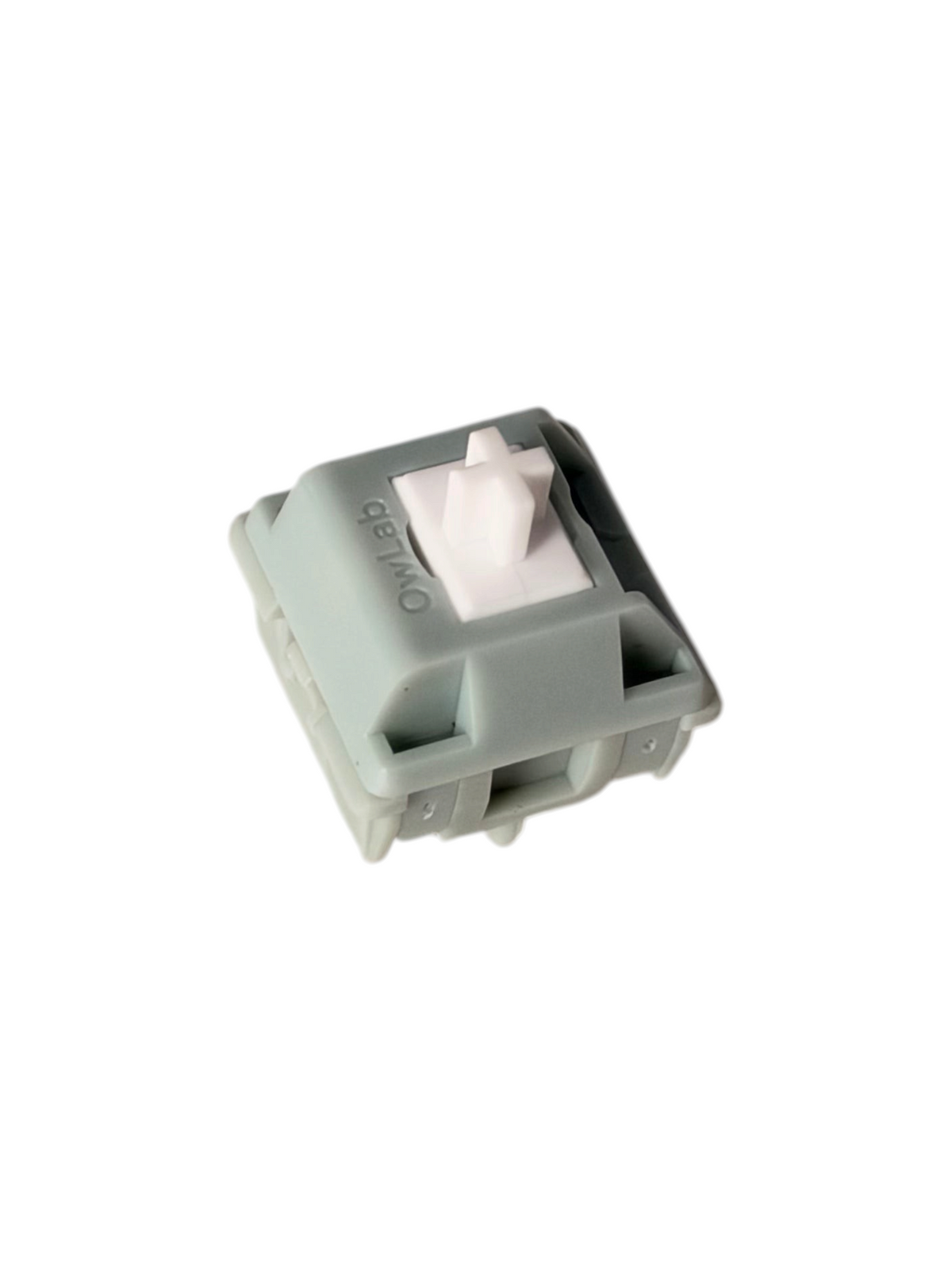

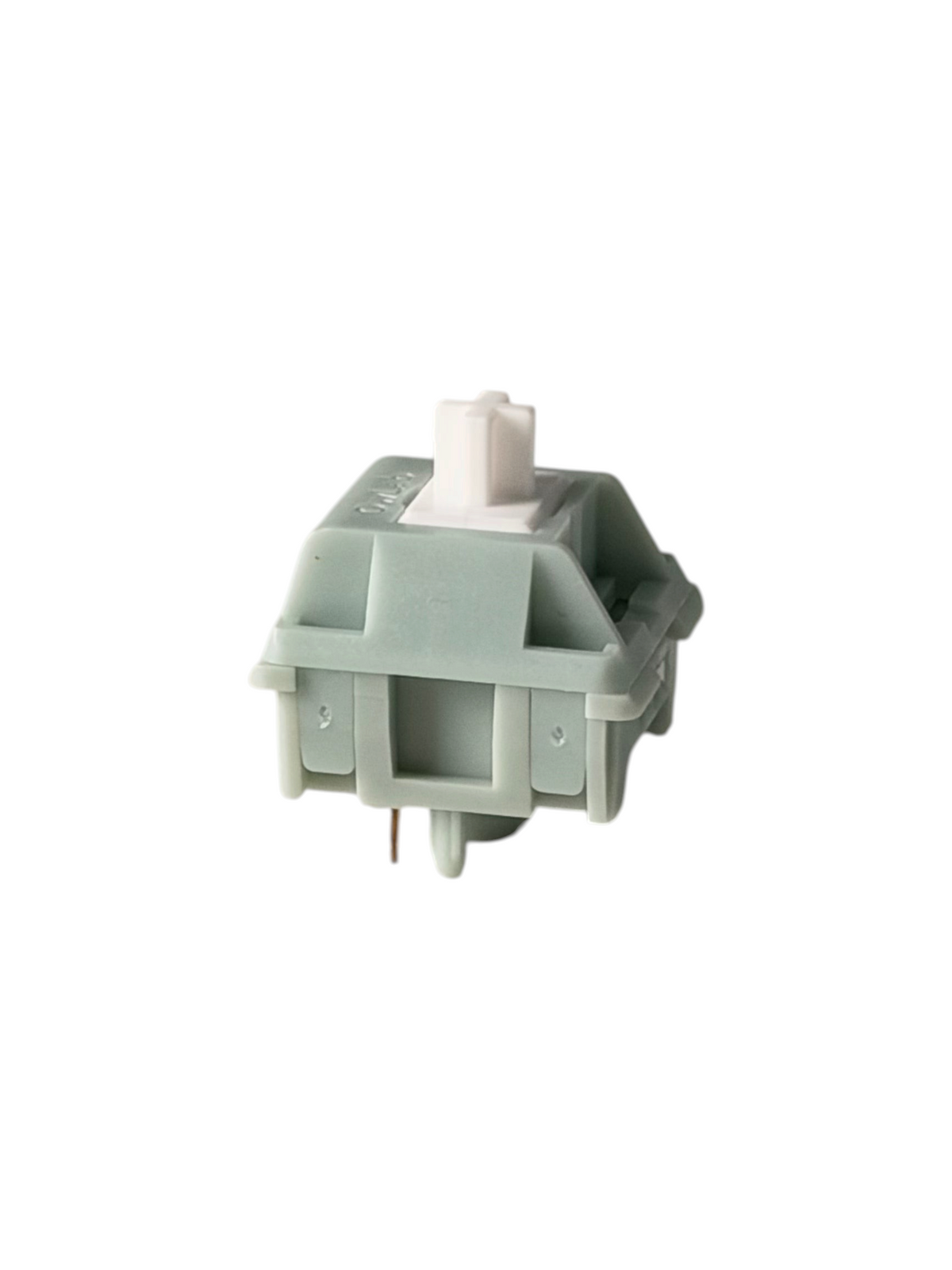

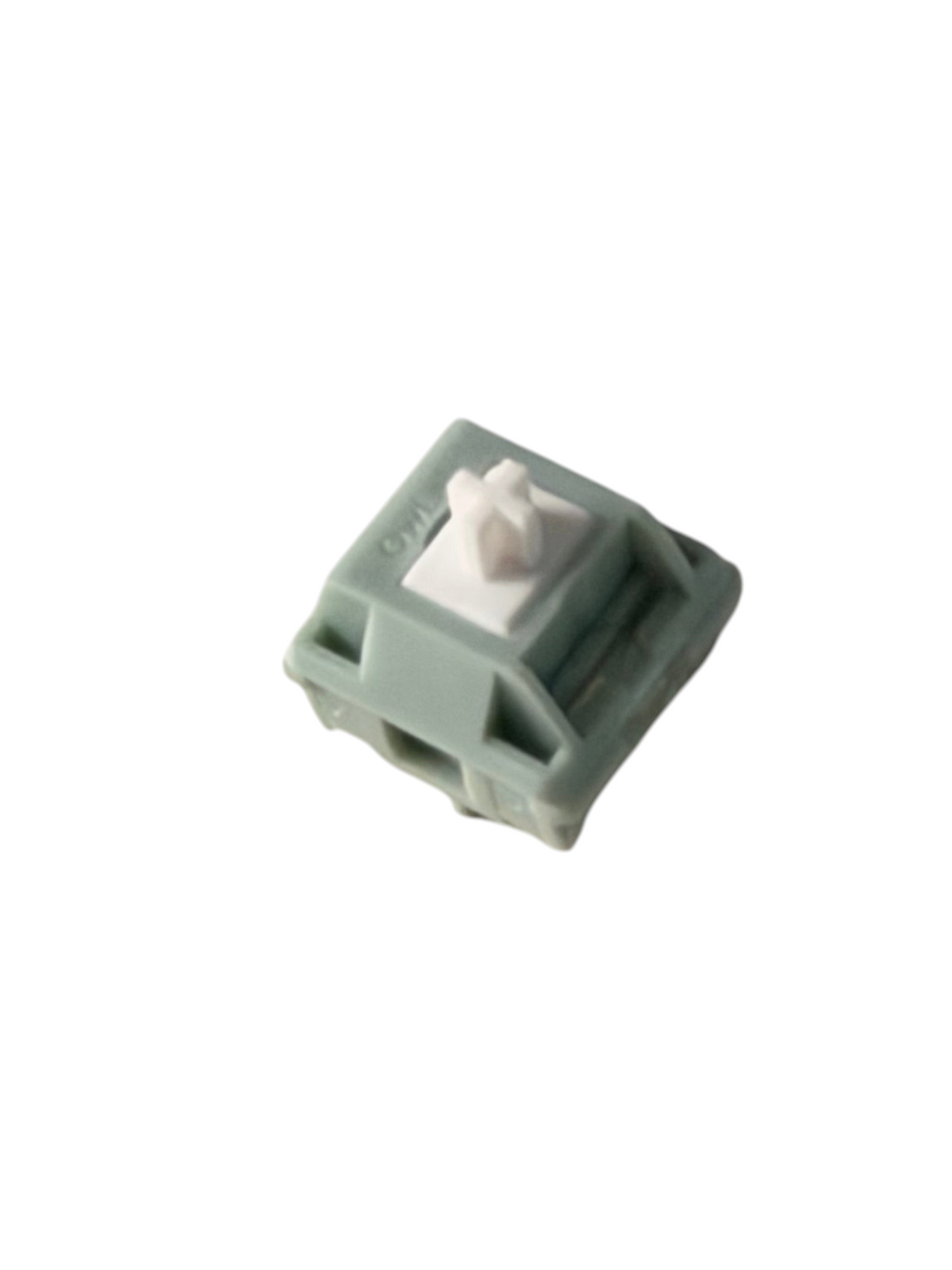

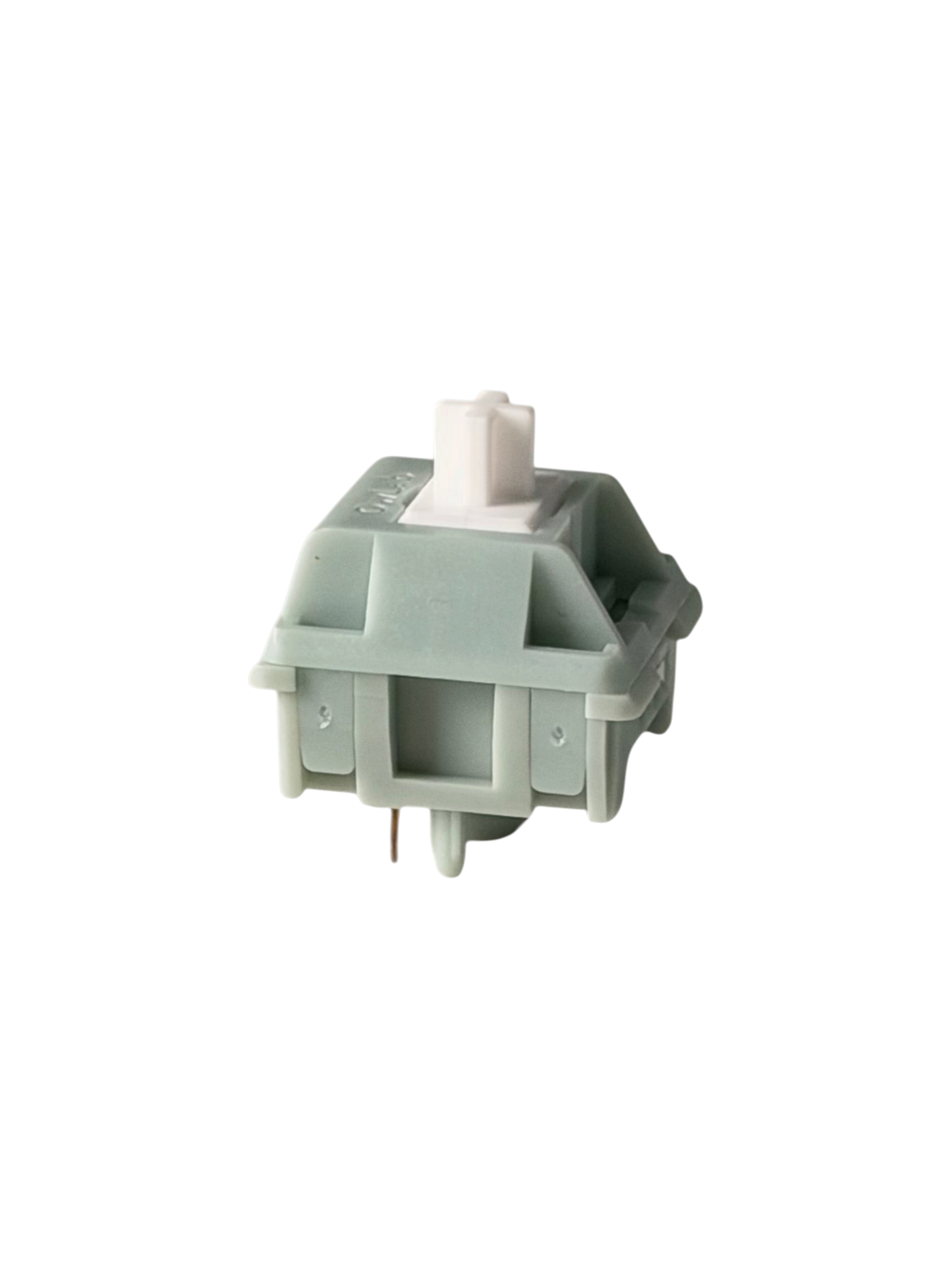

The OwLab London Fog is a linear mechanical keyboard switch designed by OwLab and manufactured by BSUN. It pairs a long-pole UPE stem with polycarbonate housings and a 20 mm spring, and comes lubricated from the factory for a smooth, consistent keypress from the first press.

At 55 g to actuate and 60 g at the bottom it sits in the medium band: light enough for long typing sessions, with enough return to keep fast typing clean. Sold in packs of 10.

What to expect

Feel

A clean linear press with no bump or click over 3.6 mm of travel. The long-pole stem meets the bottom housing a little earlier and more firmly than a standard stem, so the bottom-out feels crisp and defined.

Sound

Long-pole stems and polycarbonate housings tend to give a brighter, more clacky bottom-out. Expect a clear, poppy sound rather than a muted thock.

Materials

UPE is a very slippery plastic, so the stem glides in the housing with very little friction. With the factory lube on top, there is nothing to do before you install them.

Q&A & Specifications

Questions & Answers

Will these fit my keyboard?

The London Fog is an MX-style switch. It fits hot-swap boards with MX sockets and can be soldered to a standard MX-compatible PCB.

What does long-pole mean?

The stem's central pole is slightly longer than usual, so it hits the bottom housing before the stem's legs do. That shortens the travel a touch and gives a firmer, sharper bottom-out.

Are they lubed?

Yes, they come factory lubed and are ready to install as they arrive.

How many do I need?

Count the keys on your board. A 60% needs around 61, a 65% around 67, a 75% around 82 and a TKL 87. Each pack holds 10, so round up and keep the spares.

Specifications

  • Model: OwLab London Fog
  • Type: linear, long-pole
  • Pack size: 10 switches
  • Mount: MX-style
  • Actuation force: 55 g
  • Bottom-out force: 60 g
  • Total travel: 3.6 mm
  • Spring: 20 mm
  • Stem: UPE, long-pole
  • Housing: polycarbonate
  • Lubrication: factory lubed
  • Designed by OwLab, manufactured by BSUN
Specifications

Polycarbonate housings
UPE material for long-pole stems
Total travel of 3.6mm
55g Actuation
60g Bottom Out
Spring Length of 20mm
Factory Lubed
Linear
Manufactured by BSUN

Inside the box

10 switches

Compatibility

Fits MX-style hot-swap keyboards with 3-pin or 5-pin sockets, and works with standard MX-style keycaps. Can also be soldered into MX-compatible PCBs. SMD LED compatible, so RGB lighting works on boards with south- or north-facing LEDs.

Warranty

1 year manufacturer's warranty
