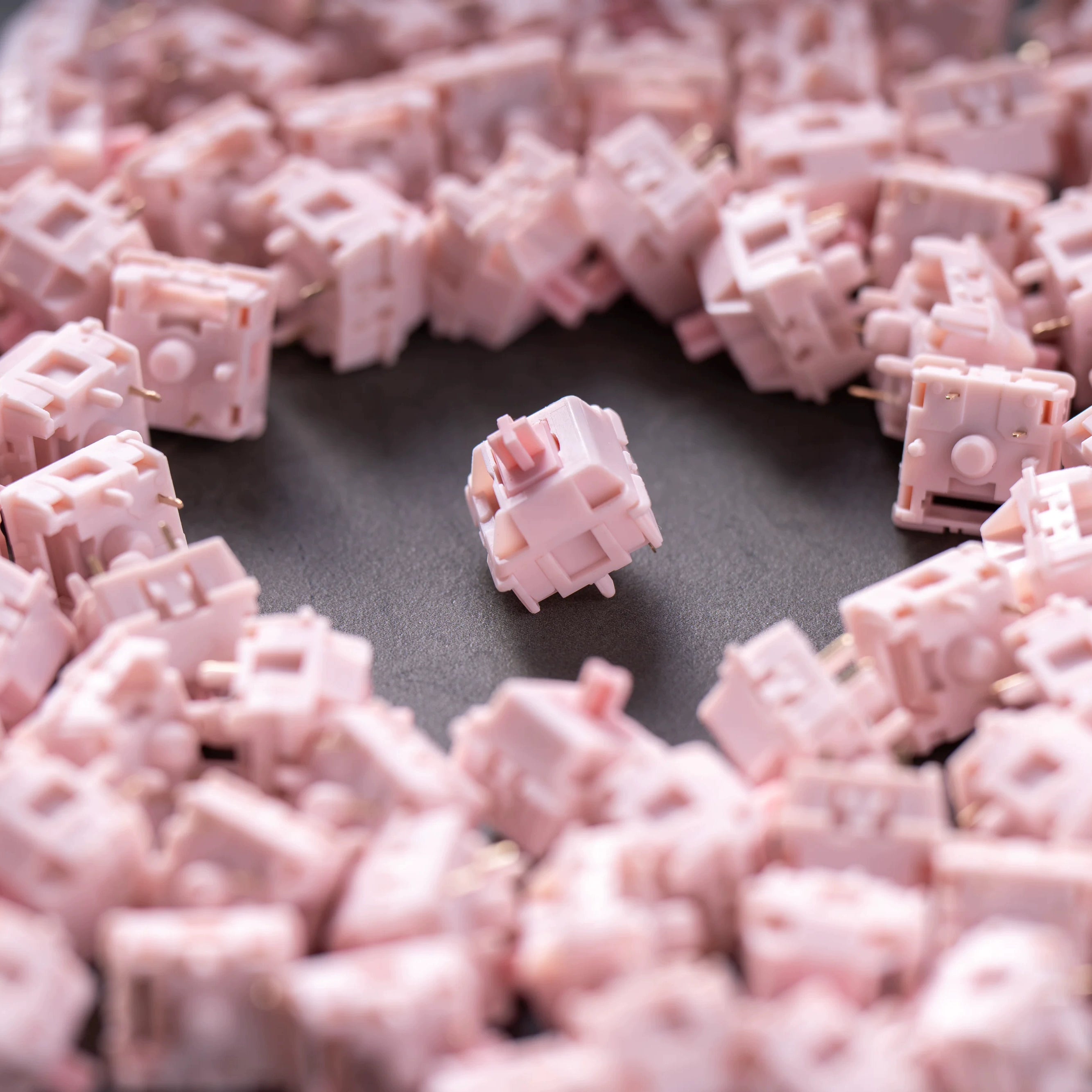

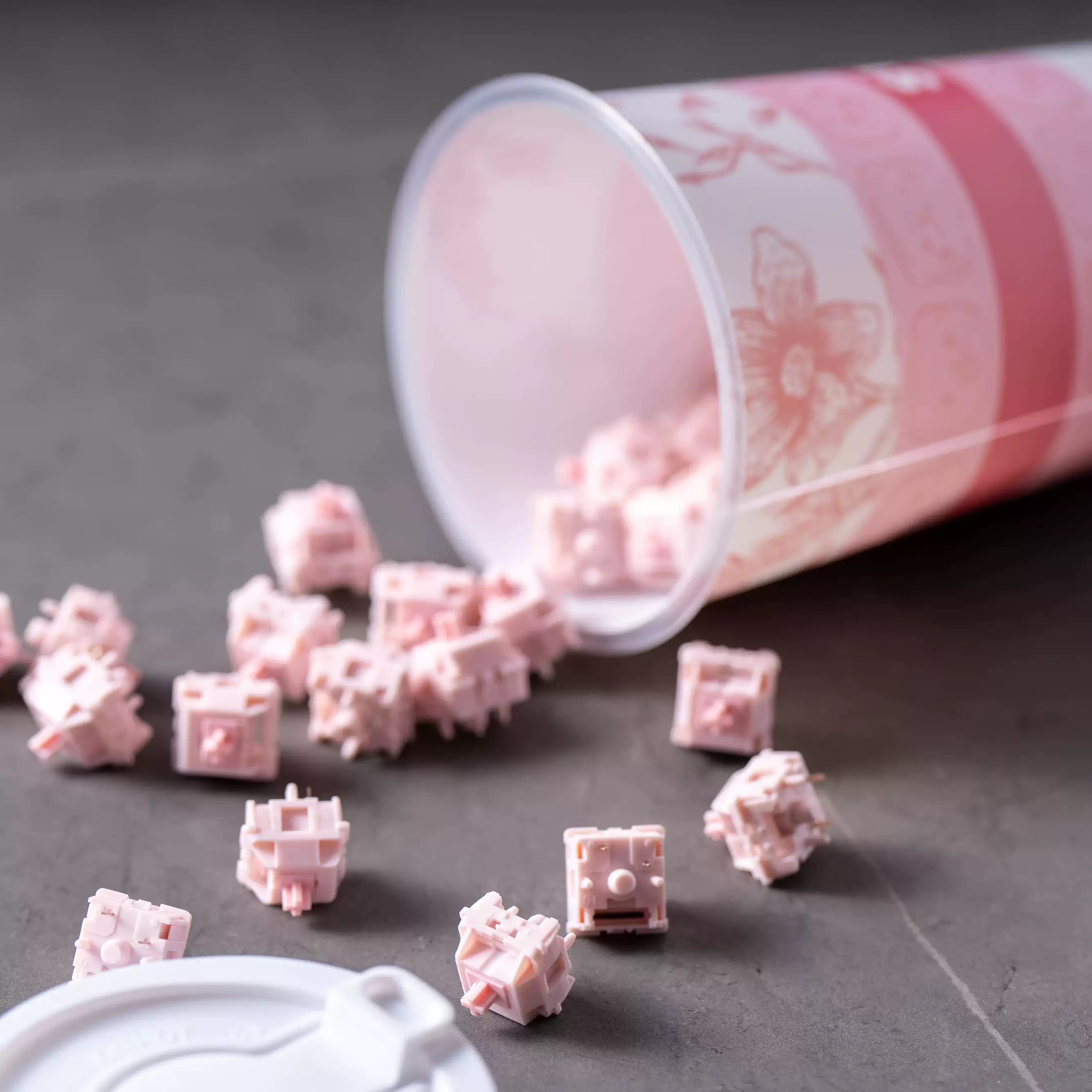

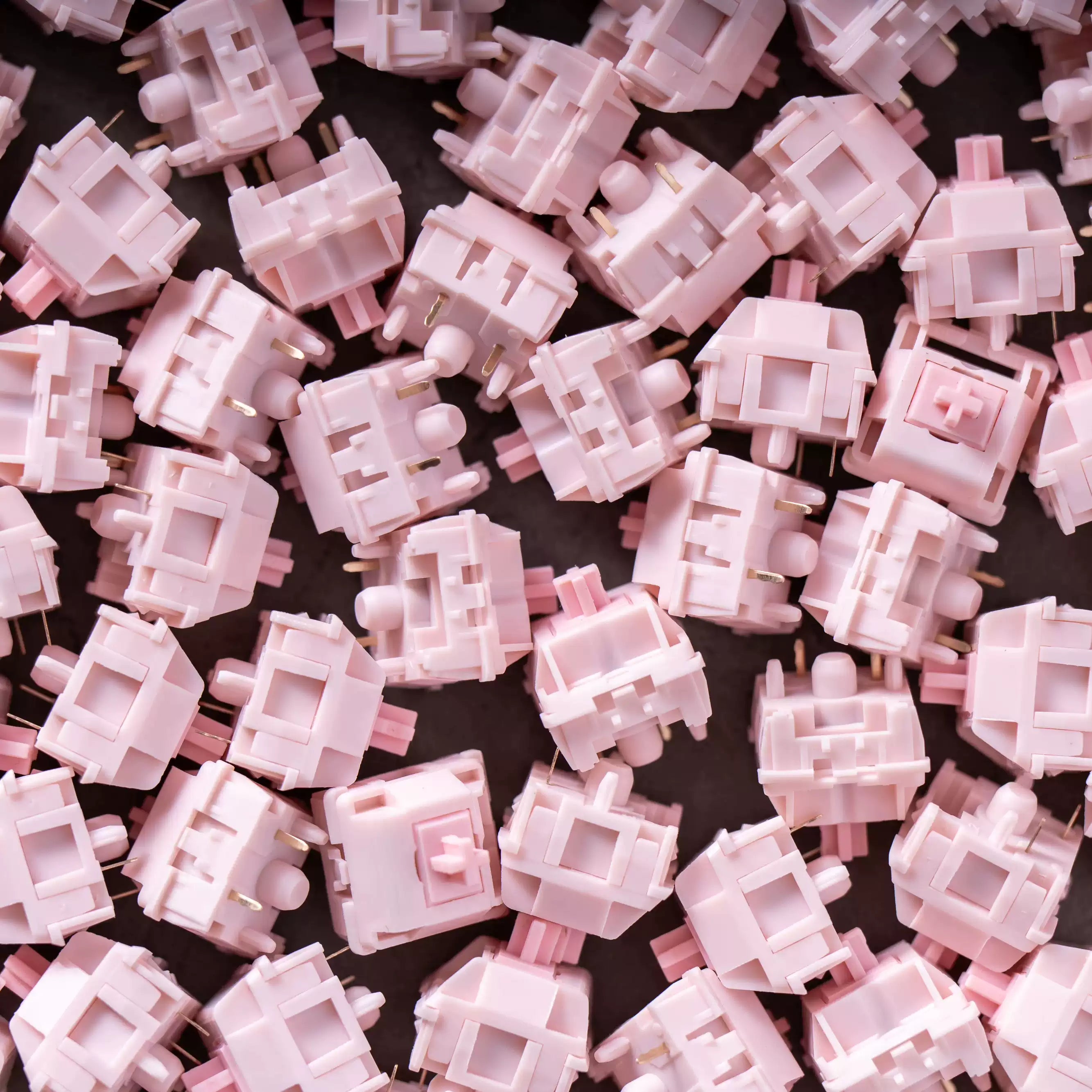

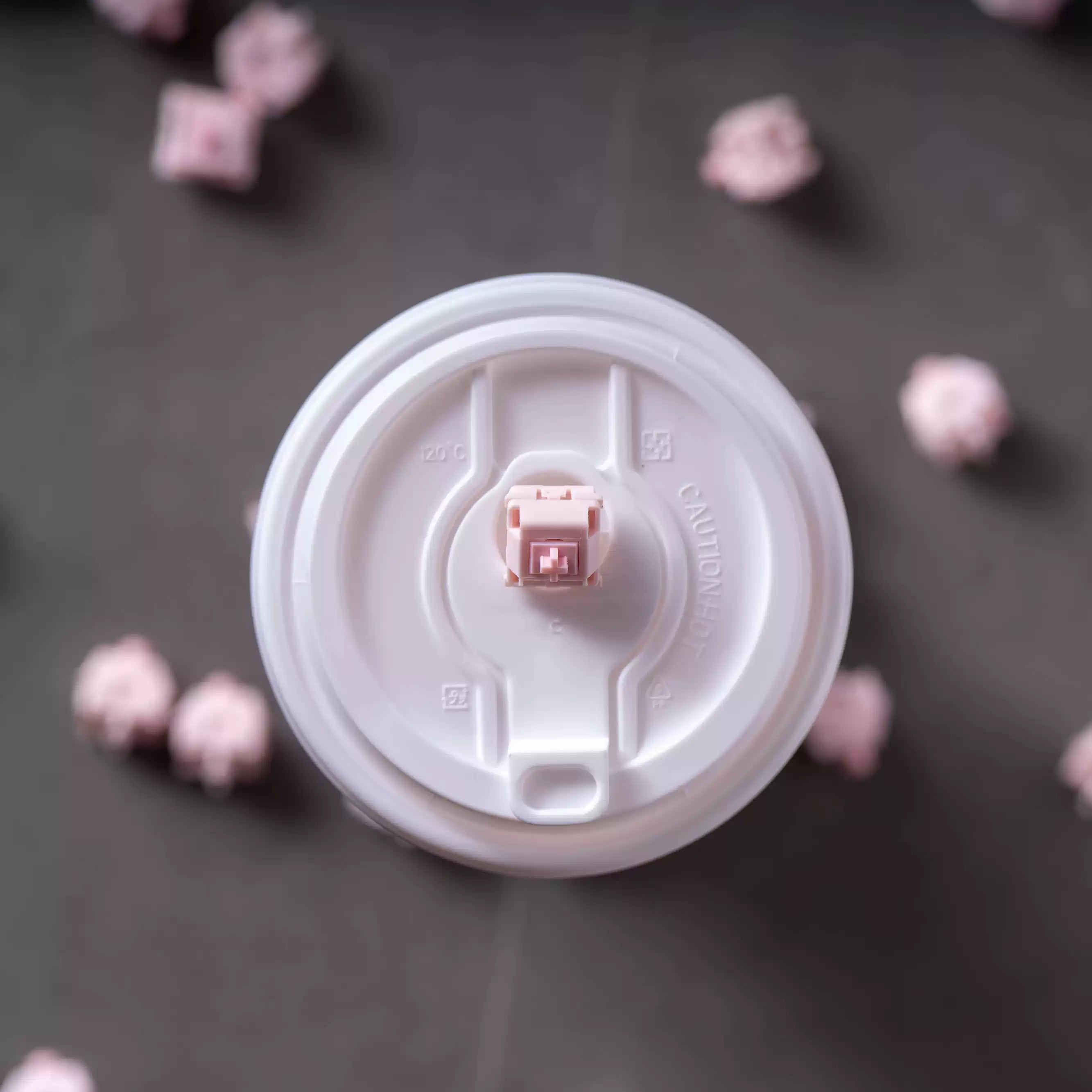

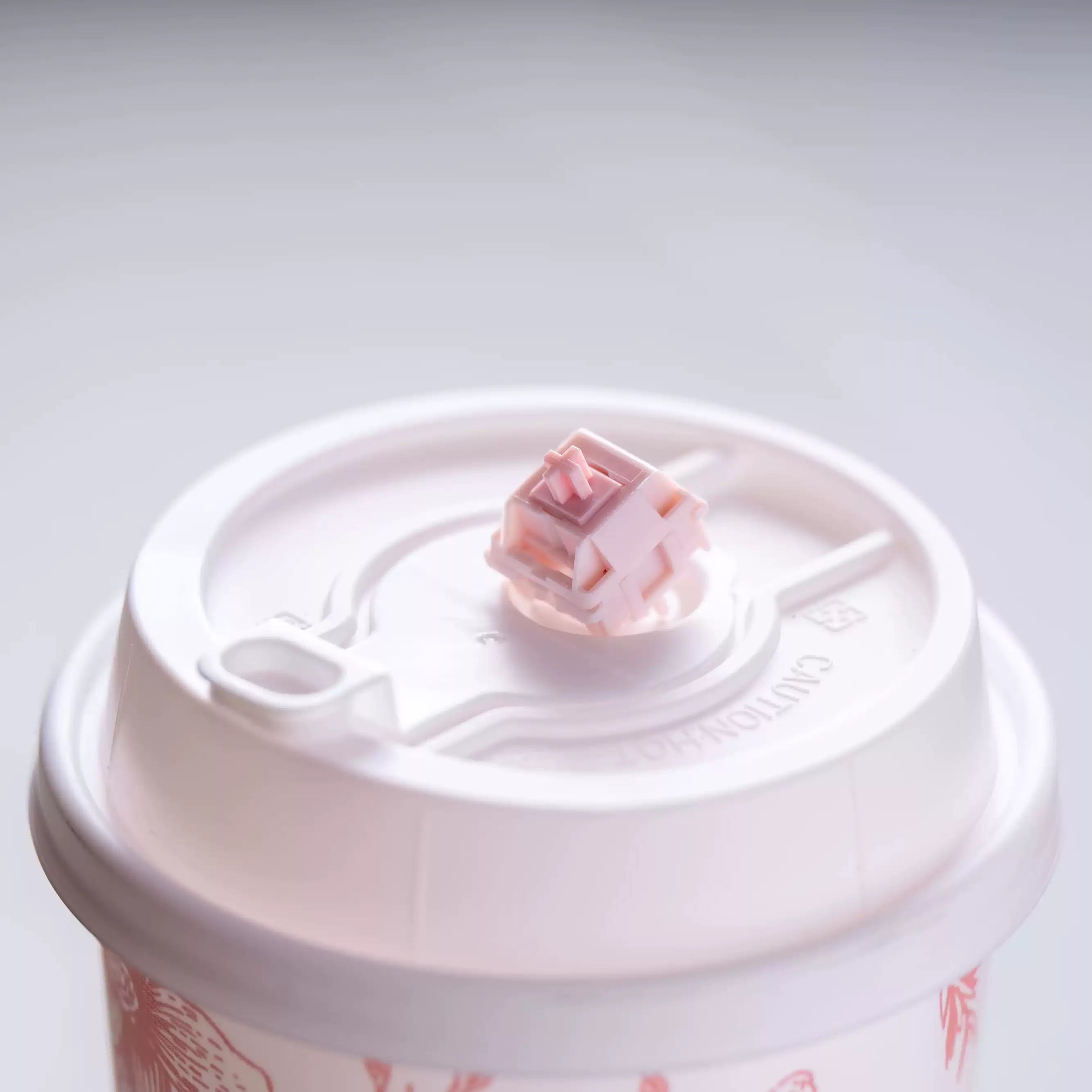

The HMX Diorie Linear Switch is designed for users who prefer a light, fast, and smooth typing experience. Manufactured by HMX and designed by Sweet Sheep, this switch features a refined linear feel with consistent travel and stable housing. With a factory pre-lubed stem, extended 22 mm spring, and carefully selected materials, the Diorie delivers a balanced sound profile and soft bottom-out feel ideal for both typing and gaming. Its 5-pin PCB mount design ensures excellent stability in custom mechanical keyboard builds.

Got questions? 🤔

Do you have any questions, or unsure if this product is compatible with your setup?

Specifications

• Switch type: Linear
• Manufacturer: HMX
• Designer: Sweet Sheep
• Mount: 5-pin PCB mount
• Stem material: T5
• Top housing: PA66
• Bottom housing: P4
• Spring: 22 mm single-stage spring
• Operating force: 37 ± 5 g
• Bottom-out force: 43 ± 5 g
• Pre-travel: 2.0 ± 0.4 mm
• Total travel: 3.7 ± 0.3 mm
• Factory pre-lubed
• Smooth linear motion with soft bottom-out feedback

Inside the box

• HMX Diorie linear switches (10 switches)

Compatibility

• Compatible with MX-style mechanical keyboards
• Supports hot-swap and solder PCBs with 5-pin sockets
• Suitable for custom builds, gaming keyboards, and typing-focused setups

Warranty

1 year manufacturer's warranty – further warranty provided at OZO’s discretion depending on the situation
